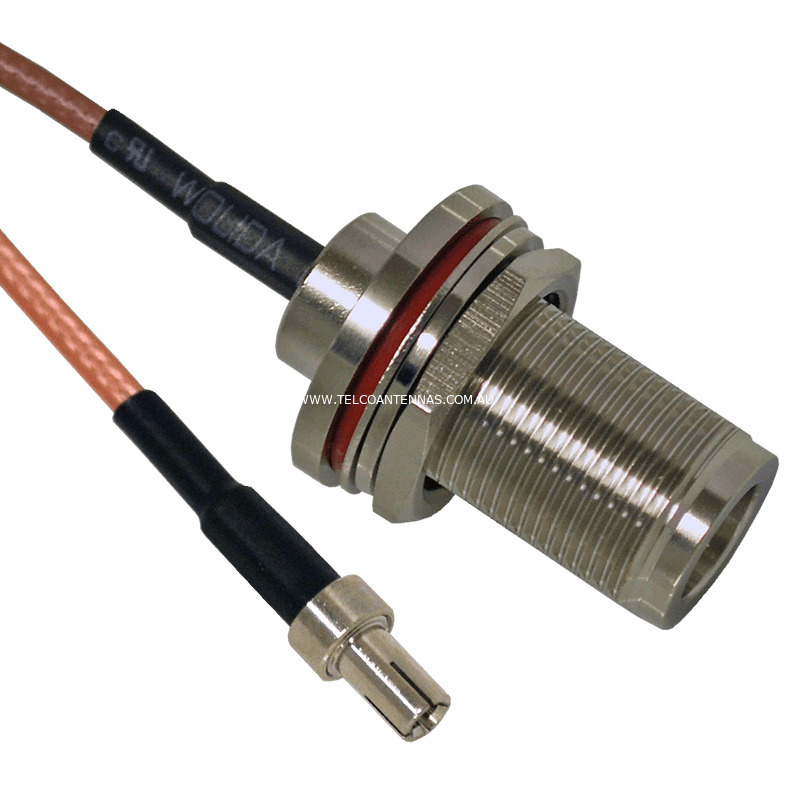

TS9 Male to N Female Bulkhead Patch Lead



Key Features



  • Durable short barrel TS9 connector

  • TS9 plug to N bulkhead jack patch cable

  • 15cm of high quality RG316 cable.



Additional



  • This is a more durable version of the standard TS9 to FME patch lead

  • Its short barrel is made of a thicker gauge metal (~0.75mm/22 gauge) making it suitable for hundreds of insert and removal cycles.



What does a patch lead do?



  • Super low loss cables such as LMR400 or LDF4-50A often terminate with N Male connectors due to their excellent operating characteristics across a wide RF spectrum

  • Bulkhead jack connectors also permit antenna connection through an enclosure while remaining weatherproof.



Automatic Price Breaks



  • The price listed for this item is for a quantity of 1-24 units

  • Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered

  • For large orders please contact our sales team to arrange a quote.



Discounts



  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount




male TS9 connector

N bulkhead jack female



Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(TS9-NF-316)

SKU TS9-NF-316
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.000750000m3
