Key Features



  • Dual-Band, Dual-Polarity Optimized for 802.11ac

  • High Efficiency Directional Radiation Pattern

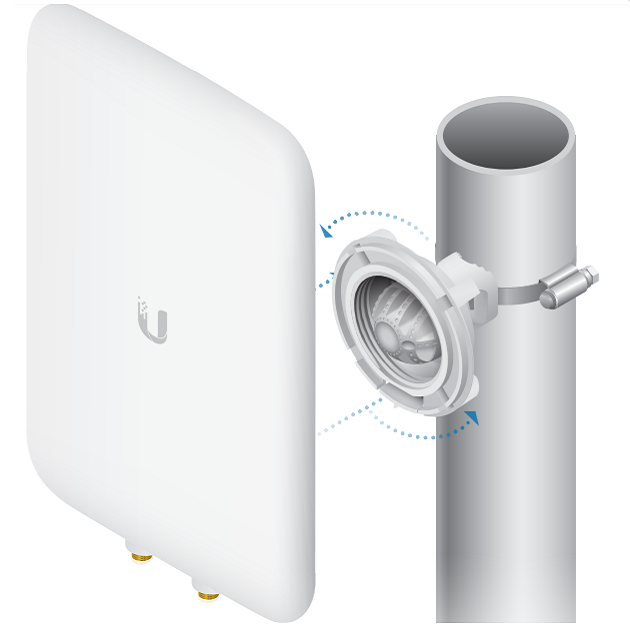

  • Three-Axis Ball Joint Mount for Precise Aiming

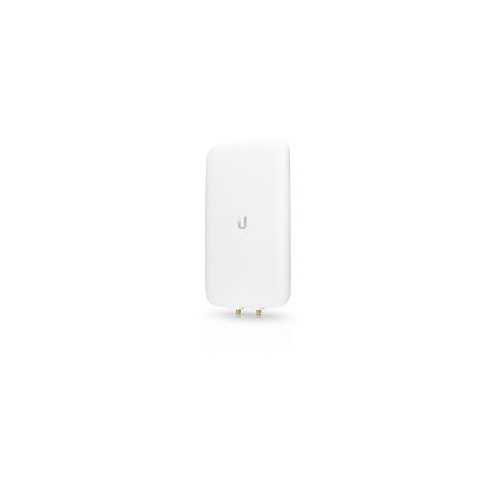

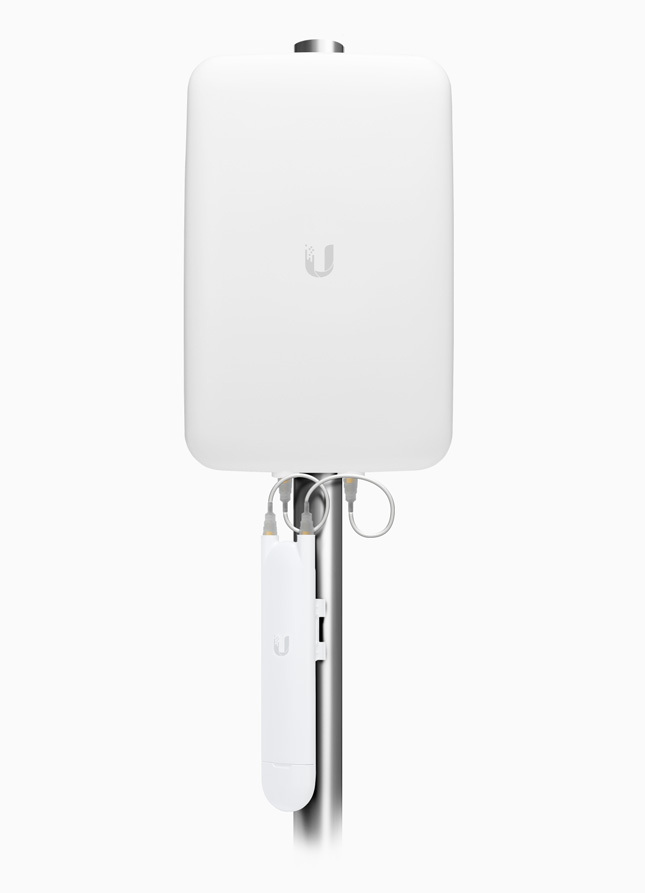

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M.
With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2400-2500MHz)
compatible
10dBi
ISM & Bluetooth (2450MHz)
compatible
10dBi
802.11 a/n/ac WiFi (5150-5850MHz)
compatible
15dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz / 5150-5900MHz

  • Input Impedance: 50Ω

  • Input Power: 50W

  • VSWR: <2:1

  • Vertical Beamwidth: 90° / 45°

  • Polarisation: Dual Linear

  • Isolation: >25dB



Mechanical/Environmental Specifications

  • Construction: UV Stabilized Plastic

  • Cable: None supplied

  • Connector: Dual Integrated RP SMA Female

  • Weight: 0.4kg

  • Height: 201.3mm

  • Width: 128mm

  • Thickness: 32.5mm



Specification Sheet

(UMA-D)

SKU UMA-D
Brand Telco
Shipping Weight 0.9000kg
Shipping Width 0.205m
Shipping Height 0.090m
Shipping Length 0.210m
Shipping Cubic 0.003874500m3
