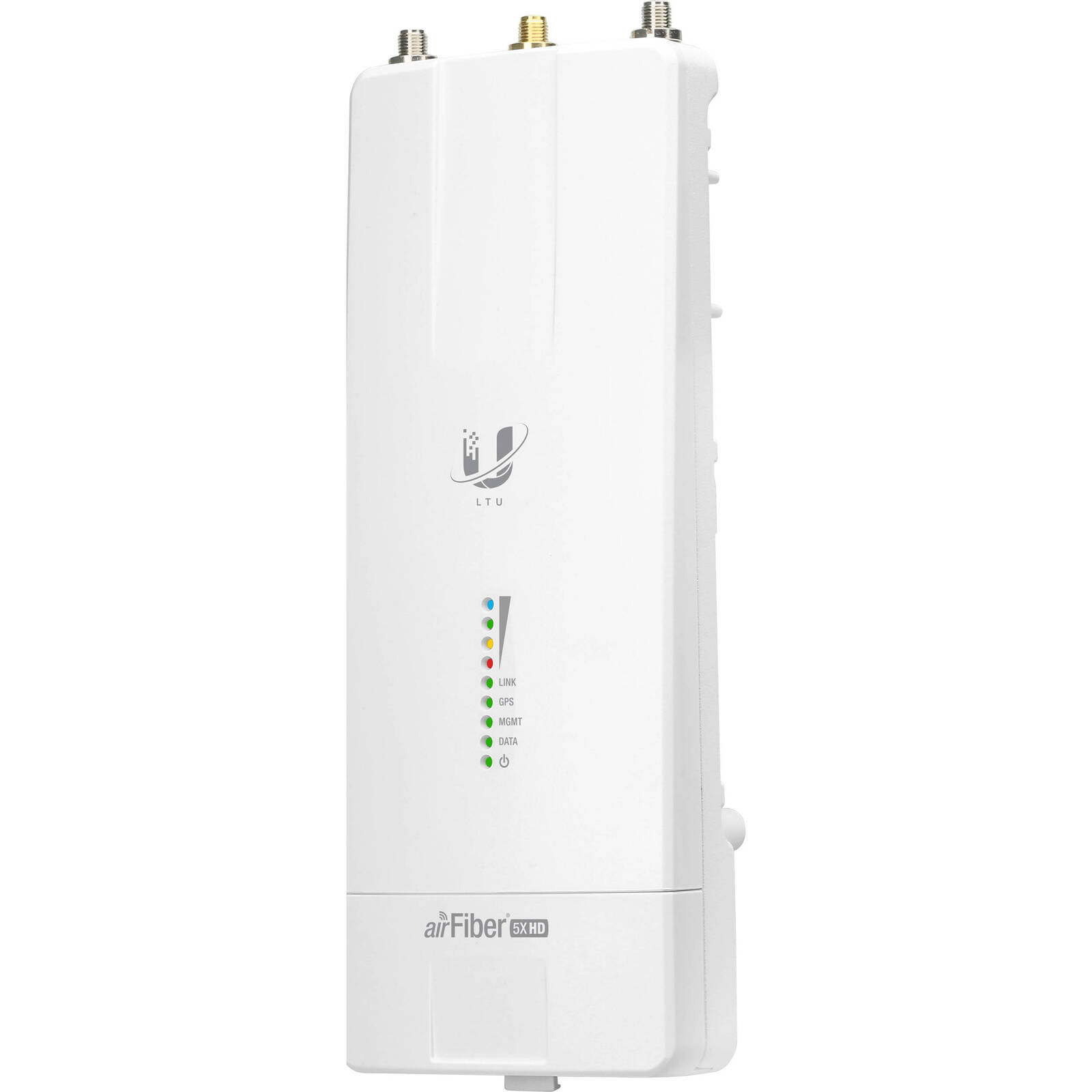

Ubiquiti AirFiber 5XHD - Long Range 5GHz Carrier Back-Haul Radio

Key Features

• Class-licensed 5.8GHz UNII band (unlicensed-band)

• Proprietary RF Filtering

• 2 Million+ Packets per Second

• 4096 QAM Modulation

• True 1Gbps+

• IP-67 Durability

New Connectorised Model

• After extensive user feedback about the AF5 model, Ubiquiti released a connectorised model permitting the attachment of high gain external antennas, permitting substantially higher ranges and higher throughputs

• This allows attachment of ultra high gain, high isolation, deep dish, and spatial diverse antenna configurations, bringing the technology in-line with industry leaders

• Newly developed for airFiber AF5XHD, the patent-pending xRT feature uses an innovative, adaptive multi-channel coding scheme to enhance radio transceiver performance, thereby maximising your link budget and spectrum utilization – while still maintaining regulatory compliance

• This results in links that can span distances from 10m to over 100km.

Innovative Proprietary Modem Technology

• Ubiquiti’s innovative proprietary modem technology was purpose-built to address the specific challenges of outdoor, PtP (Point-to-Point) bridging and high-performance network backhauls

• Every aspect of the radio has been carefully simulated and designed to optimize range, speed, and latency performance in the harshest RF noise environments.

Synchronous Data Transmission and Reception

• Conventional wireless standards impose a latency by having to receive a packet before a packet is transmitted

• airFiber can transmit data synchronously without any wait time. airFiber features traditional TDD and FDD modes of operation in addition to the proprietary Hybrid Division Duplexing (HDD) mode, which provides a breakthrough in range and spectral efficiency performance

• Based on the ranging algorithm built into the air protocol, the airFiber radios use patent-pending HDD technology to calculate the propagation delay and know when each radio can transmit and receive, so they send packets in precise synchronisation

• Packet transmission latency is virtually eliminated.
