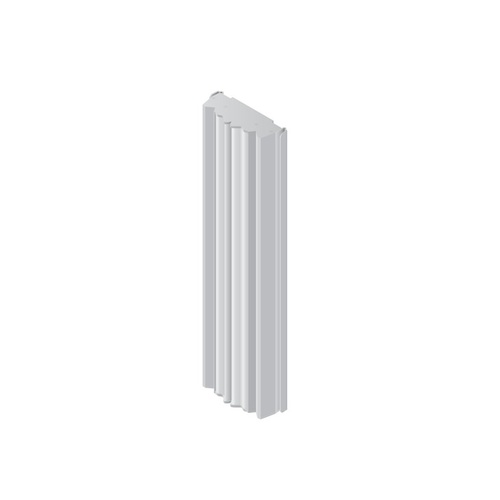

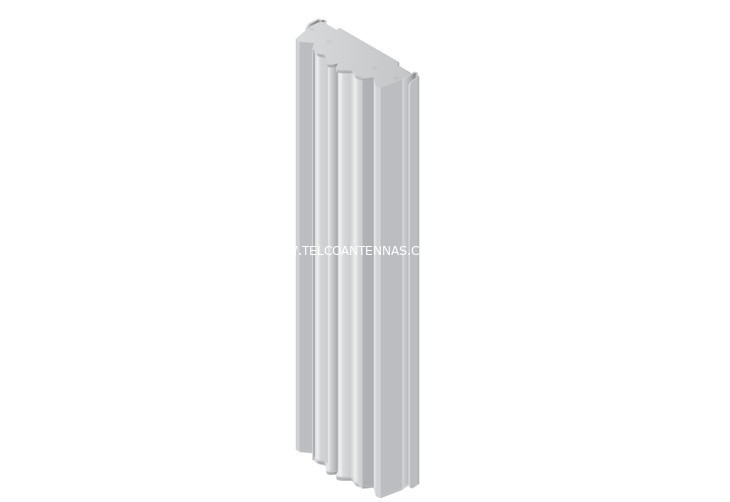

Ubiquiti airMAX AC Sector Antenna - 22dBi, 45deg



Key Features



  • Integrated mount for Rocket

  • Ideal for sectored base station deployment

  • 45 degree sector

  • 2x2 MIMO 5.8GHz

  • Designed specifically for airMAX Rocket 5AC.



Usage



  • As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios

  • They are also compatible with RocketM5 models, however, optimal performance requires the Rocket5ac.





  • The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower

  • Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).



Specifications / Frequency



Network Compatibility
Yes/No
Gain
AirMAX M5 2x2 MIMO (5800MHz)
compatible
22dBi



Electrical Specifications



  • Frequency Range: 4900-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Dual Linear (V & H)

  • Cross-Pol Isolation: >28dB

  • H-Pol Beamwidth: 123° (6dB)

  • V-Pol Beamwidth: 123° (6dB)

  • Vertical Beamwidth: 4°

  • Electrical Downtilt: 2°

  • Radiation: Sector



Mechanical/Environmental Specifications



  • Cable: 2x RP-SMA jumper cables included

  • Connector: 2x RP-SMA Female

  • Wind Rating: 200km/hr

  • Weight: 1.1kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 367 x 63 x 41mm (L x W x H)

  • EN 302 326 DN2



Read More



(AM-5AC22-45)

SKU AM-5AC22-45
Brand Ubiquiti
Shipping Weight 7.4000kg
Shipping Width 0.890m
Shipping Height 0.190m
Shipping Length 0.260m
Shipping Cubic 0.000075000m3
