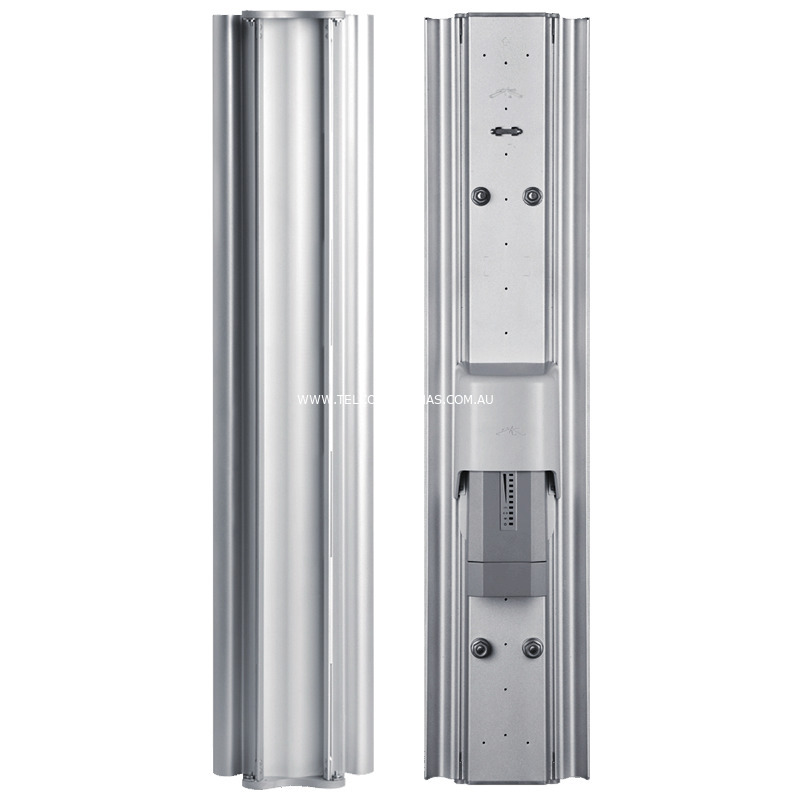

Ubiquiti airMAX M2 Titanium Variable Beamwidth Sector Antenna

Key Features

• 15-17dBi variable gain

• 60-120° variable beamwidth

• Ideal for high noise sectored base station deployment

• 2x2 MIMO 2.4GHz

• Designed specifically for airMAX Rocket M2/M2 Titanium.

Usage

• AirMAX Sector Titanium is a Carrier Class 2x2 Dual Polarity MIMO Base Station Antenna designed to seamlessly integrate with Rocket M2 radios

• Pair a Rocket M2 radio with an airMAX Sector reach to create a high powered 2.4GHz WiFi or PtMP base station

• Providing adjustable beamwidth from 60 to 120 degrees combined with great isolation performance, the new titanium sectors provide additional scalability and noise immunity performance in hi-noise environments and co-location deployments.

UniFi Outdoor+ High Density Access Point

• This sector antenna can be coupled with the UAP Outdoor+ in a 3-gang base station to provide a high performance, high capacity WiFi network

• The Outdoor+ access point contains an active heterodyne filter to isolate the units channel from others ganged on the same mast, meaning 3 APs can be positioned on channels 1, 6, and 11 with almost no co-channel interference.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
AirMAX M2 2x2 MIMO (2400MHz)		15-17dBi

Electrical Specifications

• Frequency Range: 2300-2600MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Dual Linear (25dB isolation)

• Horizontal Beamwidth: 60-120° (variable)

• Vertical Beamwidth: variable

• Electrical Beamwidth: 4°

• Electrical Downtilt: 4°

• Radiation: Sector

Mechanical/Environmental Specifications

• Cable: 2x RP-SMA jumper cables included

• Connector: 2x RP-SMA Female

• Wind Rating: 200km/hr

• Weight: 6.4kg

• Mounting: Pole mounting bracket included

• Dimensions: 773 x 372 x 120mm (L x W x H)

• EN 302 326 DN2
