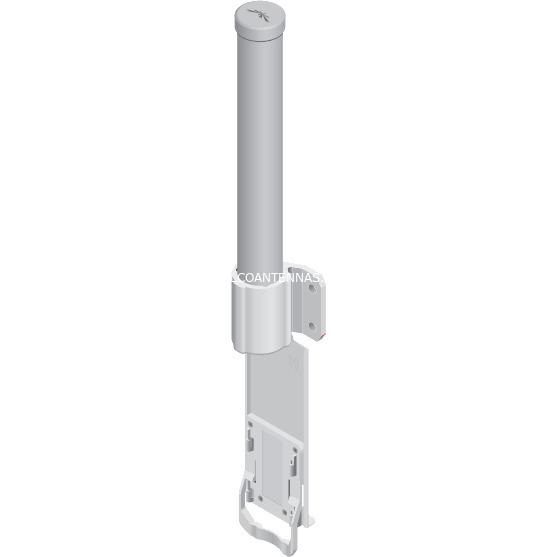

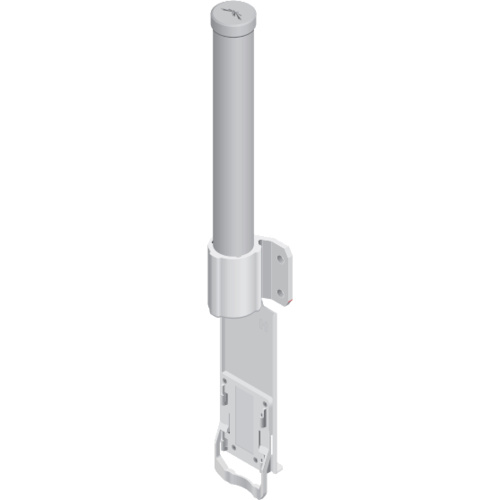

Ubiquiti airMAX 5.8GHz (M5) 10dBi Omnidirectional Antenna



Key Features



  • Integrated mount for Rocket

  • Low form factor, low wind-load design

  • "2X2" MIMO 5.8GHz (Nominal, Dual Vertical Pol)

  • Designed specifically for airMAX Rocket M5.



Usage



  • AirMAX Omni is a Carrier Class 2x2 MIMO Omnidirectional Antenna designed to seamlessly integrate with Rocket M5 radios

  • Pair the Rocket M5’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation

  • This seamless integration gives network architects unparalleled flexibility and convenience

  • AirMAX omnidirectional antennas are most commonly coupled with a Rocket M5 in a PtMP network - connecting to a number of surrounding buildings via their NanoStation M5 or NanoBridge M5 stations. See the diagram below for just one of many possibilities.



 rocket m5 omnidirectional point to multipoint building network



Specifications / Frequency



Network Compatibility
Yes/No
Gain
AirMAX M5 2x2 MIMO (5800MHz)
compatible
10dBi



Electrical Specifications



  • Frequency Range: 5450-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.6:1

  • Polarisation: Dual Linear Vertical

  • Vertical Beamwidth: 12°

  • Downtilt: 4°

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Cable: 2x SMA jumper cables included

  • Connector: 2x SMA Female

  • Wind Rating: 200km/hr

  • Weight: 0.68kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 582 x 90 x 65mm (L x W x H)

  • EN 302 326 DN2



Read More







(AMO-5G10)

SKU AMO-5G10
Brand Ubiquiti
Shipping Weight 3.7000kg
Shipping Width 0.210m
Shipping Height 0.250m
Shipping Length 0.750m
Shipping Cubic 0.039375000m3
