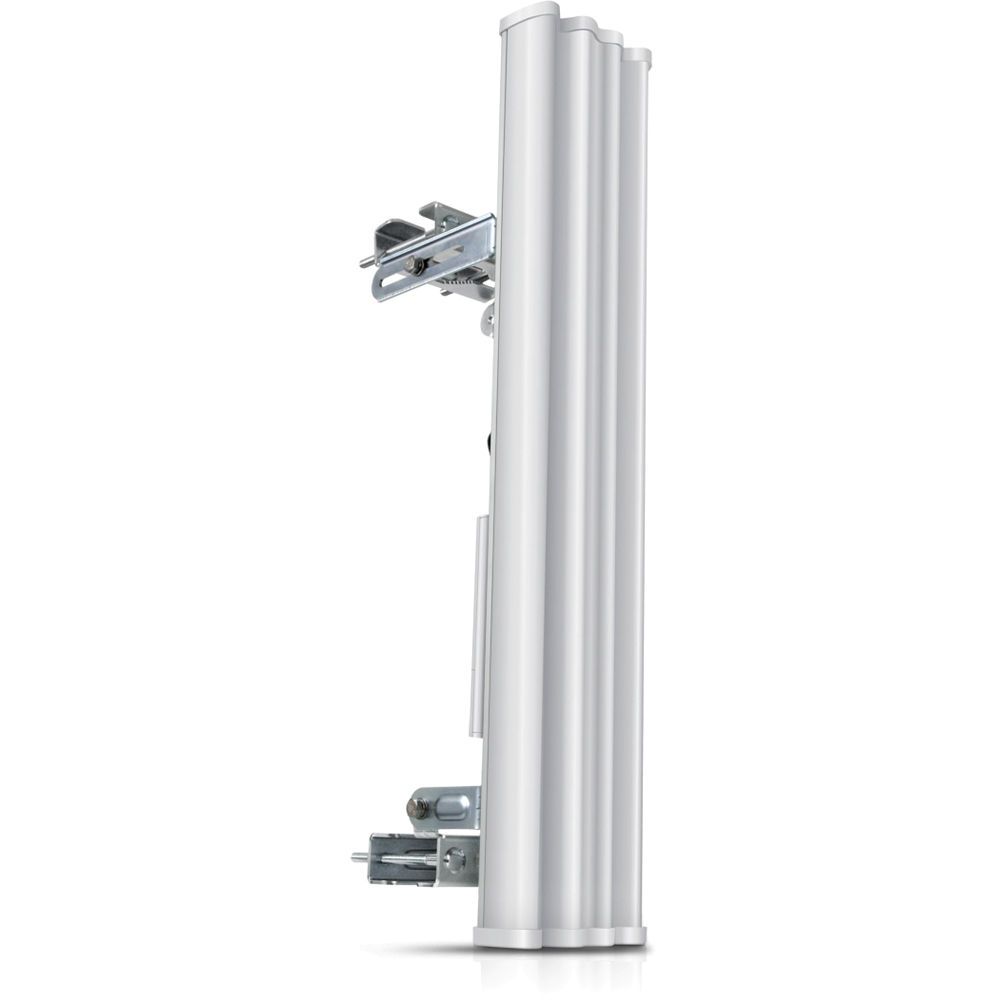

Ubiquiti airMAX 5.8GHz (M5) 20dBi Sector Antenna

Key Features

• Integrated mount for Rocket

• Ideal for sectored base station deployment

• 90 degree sector with 8 degree vertical beam

• 2x2 MIMO 5.8GHz

• Designed specifically for airMAX Rocket.

Usage

• AirMAX Sector is a Carrier Class 2x2 Dual Polarity MIMO Base Station Antenna that was designed to seamlessly integrate with Rocket M5 radios

• Pair a Rocket M5 radio with an airMAX Sector reach to create a high powered PtMP base station, covering a 90 degree sector. 90 degree sectors are ideal for when deploying a conventional 3x sector airMAX node. Dividing your base station into 3 sectors can theoretically produce up to a 300% increase in capacity due to frequency-reuse

• Higher capacity can be achieved by further subdivision into 4-6 sectors using even higher gain antennas. When sectoring in this fashion it's important that each node is integrated with a Rocket M5 GPS in order to take advantage of airMAX's proprietary AirSync protocol

• AirSync replaces the radio's conventional carrier-sense timing protocol with a inter-radio synchronised TDMA protocol

• Instead of each radio polling for a quiet channel before transmitting (and potentially colliding), AirSync detects the GPS coordinates of each unit and synchronises transmissions into separate time slots

• In addition to GPS synchronisation, multi-sector deployments will require additional antenna shielding (RF-deadening material is strongly advised.

airMAX TDMA multi-user access scheme permitting up to 100 clients per airMAX antenna. Note this diagram does not depict AirSync protocol.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
AirMAX M5 2x2 MiMo (5800MHz)		20dBi

Electrical Specifications

• Frequency Range: 4900-5850MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Dual Linear (V & H)

• Cross-Pol Isolation: >28dB

• H-Pol Beamwidth: 90° (6dB)

• V-Pol Beamwidth: 90° (6dB)

• Vertical Beamwidth: 4°

• Electrical Downtilt: 2°

• Radiation: Sector

Mechanical/Environmental Specifications

• Cable: 2x RP-SMA jumper cables included

• Connector: 2x RP-SMA Female

• Wind Rating: 200km/hr

• Weight: 5.9kg

• Mounting: Pole mounting bracket included

• Dimensions: 700 x 145 x 79mm (L x W x H)

• EN 302 326 DN2
