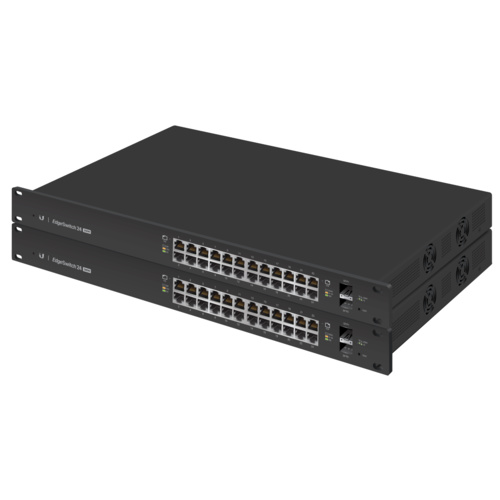

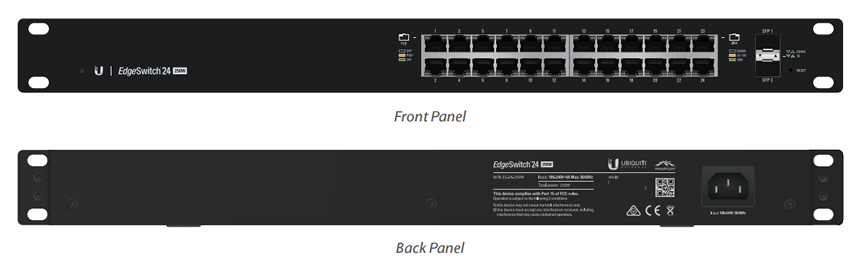

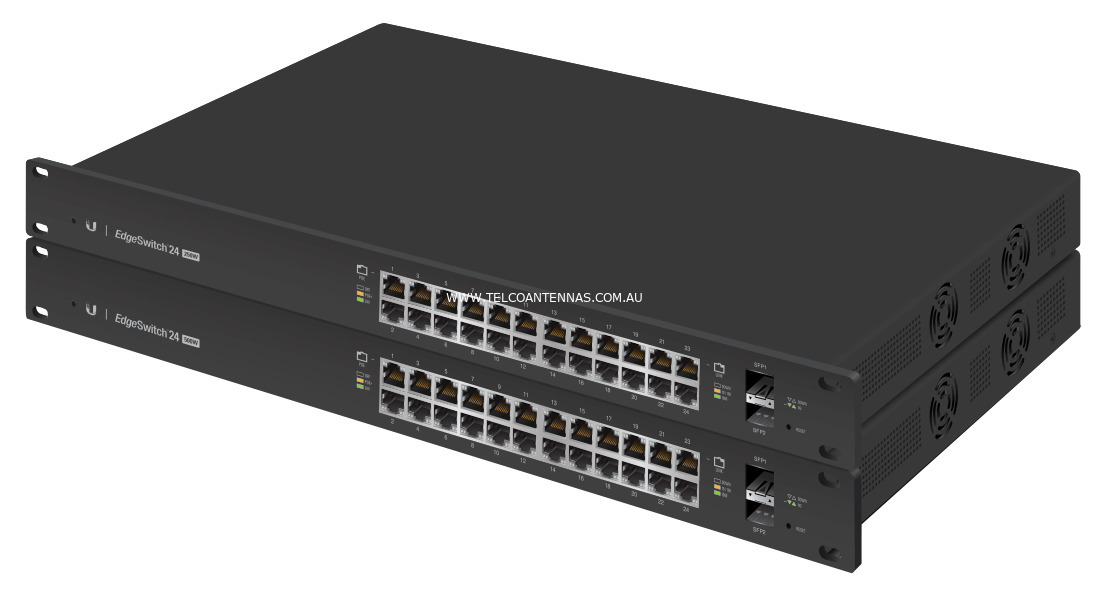

Ubiquiti EdgeSwitch - 24 Port, 250W

Key Features

• (24) Gigabit RJ45 ports

• (2) SFP ports

• Non-blocking throughput: 26 Gbps

• Switching capacity: 52 Gbps

• Forwarding rate: 38.69 Mpps

• Maximum power consumption: 250W

• Supports POE+ IEEE 802.3at/af and 24V Passive PoE

• Rackmountable.

Usage

• Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products

• The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks

• The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

• The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port models support up to 26 Gbps.

PoE+ Flexibility

• This EdgeSwitch model is available with 24 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure

• By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity

• The EdgeSwitch provides fiber connectivity options for your growing networks

• The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
