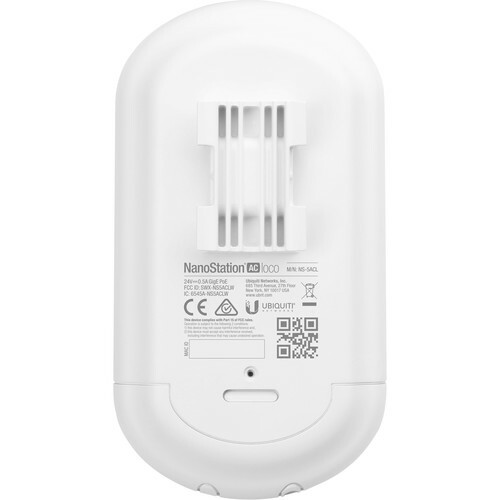

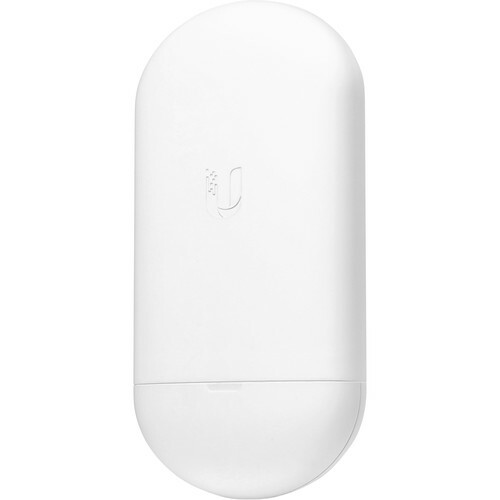

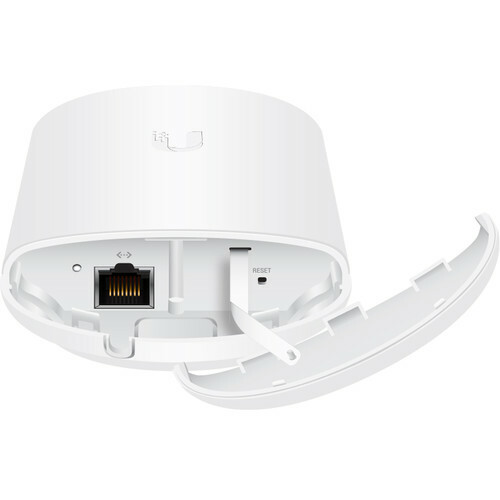

Ubiquiti NanoStation AC Loco Point-to-Point Wireless

Key Features

• Connect two remote locations on the one network

• Share Internet connection between buildings, remote sites, etc.

• Up to 450+Mbps Throughput

• Integrated AirOS web software for controlling power, bridge/AP mode, etc.

• Two units required for wireless bridge

• POE injector NOT included - POE-24-12W-G

What is a NanoStation Loco AC?

• The Loco AC is a more cost effective version of the Ubiquiti NanoStation AC - it is a lower power unit designed for shorter distances

• There are some features that the Loco version doesn't have, so if in doubt, please read through the specification sheet at the bottom of the page.

High Speed Point-to-Point Networking

• Forget Ethernet cable, the Ubiquiti NanoStation Loco AC is ideal for bridging networks or sharing broadband between buildings

• To install, place the units at either end of the network and connect both to Ethernet cables - for example, connect the first unit into your modem at location one, and connect the second into an Ethernet switch or WiFi access point at the other location

• Face both units so they point towards each other and the link is established. Simple!

• This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

• Management of the Ubiquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.

Ready to Install

• This unit has all networking hardware integrated and is completely weatherproof for permanent installation in even the toughest environments

• Signal strength indicators allow for quick and easy alignment

• For best performance the unit should be roof mounted, high and clear of obstructions, via its integrated pole mounting bracket

• The units are powered via Power over Ethernet (PoE) - but please note a PoE injector is NOT included with this product.

• This allows one cable to power the unit and also carry network traffic

• We recommend using Cat6 Outdoor UV Shielded Cable with this unit.

A heads up!

• Surge protection should be used for all outdoor installations. Ubiquiti recommend that you use two Ethernet Surge Protectors - model ETH‑SP- place one near the NanoStation and the other at the entry point to the building. The ETH‑SP will absorb power surges and safely discharge them into the ground.

Read More

• Specification Sheet

• Quick Start Installation Manual
