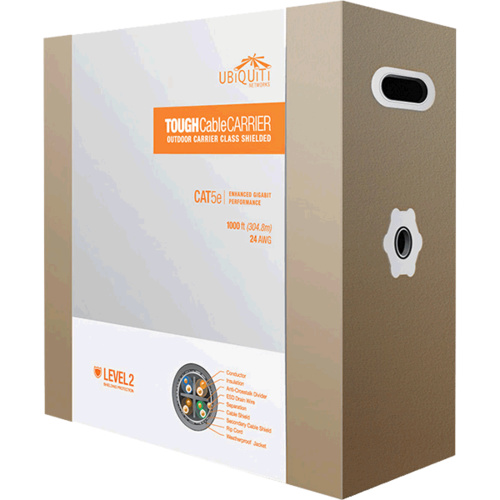

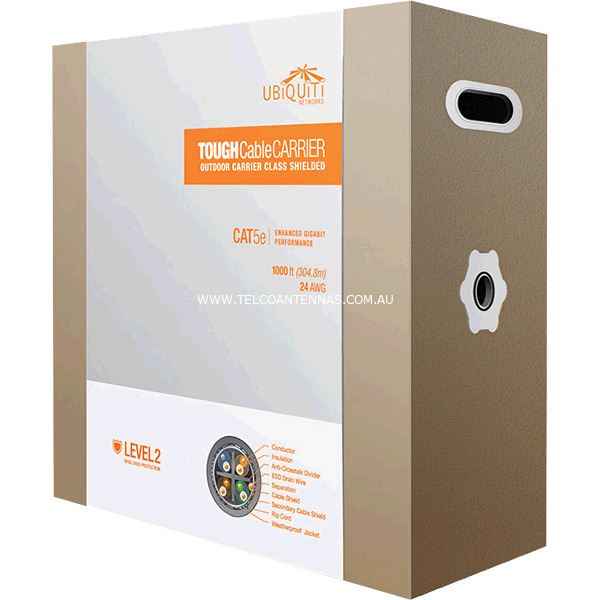

Ubiquiti ToughCable CARRIER Level 2 Outdoor Shielded Cable - 305m Reel



Key Features



  • Braided + aluminium shielded Cat5e Ethernet cable

  • Grounded drain wire to protect from ESD attacks



Usage



  • Ultra durable and weatherproof PE jacket A Category 5e, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding

  • It is rated to provide optimal performance on Gigabit Ethernet networks

  • Dramatically improve your Ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables



TOUGHCable CARRIER Specifications



  • Ethernet Support: Up to 1Gbps

  • Conductor Wire Gauge: 24 AWG

  • Conductor: Solid Bare Copper

  • Conductor Diameter: 0.500 ± 0.005 mm

  • Insulation Type: Solid PE

  • Insulation Thickness AVG: 0.26 mm, MIN: 0.25 mm

  • Insulation Diameter: 1.04 ± 0.03 mm

  • Separation (Polyester Wrapping) Thick: 0.025 mm

  • Extent: 20 mm

  • Cable Shield (Aluminum Foil) Thick: 0.060 mm

  • Extent: 18 mm

  • Secondary Cable Shield (Braid): 16*8*0.16AA

  • Density: 95% ESD

  • Drain Wire 0.4 CCS

  • Rip Cord: Yes

  • Jacket Material: PE

  • Jacket Thickness AVG: 0.50 mm, MIN: 0.46 mm

  • Jacket Outer Diameter: 6.0 ± 0.30 mm

  • Jacket Colour: Grey

  • Reference Standard: ISO/IEC 11801, TIA/EIA568B.2
