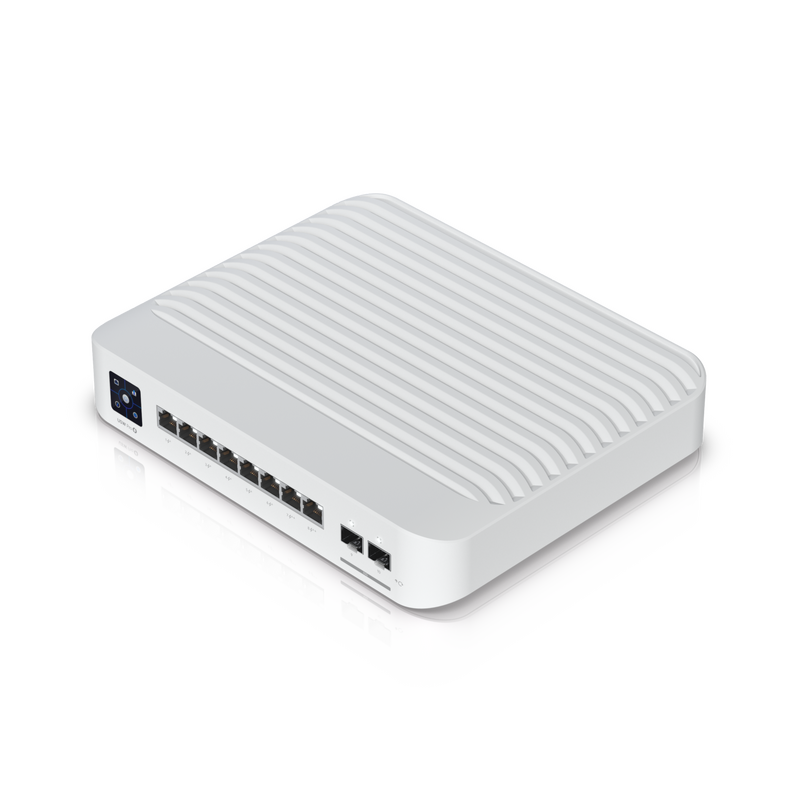

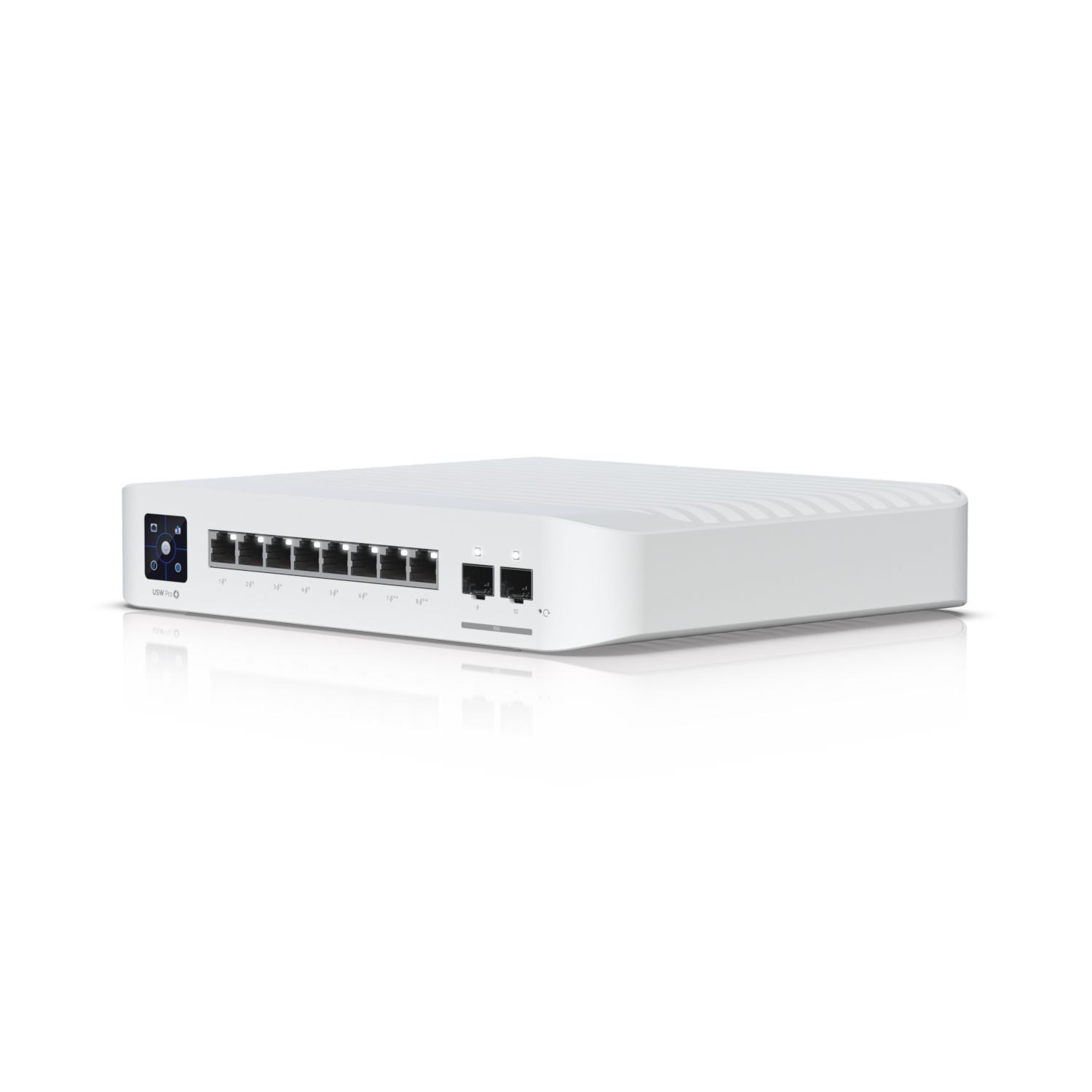

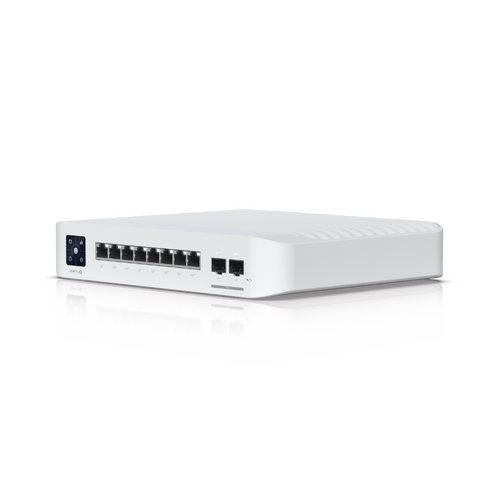

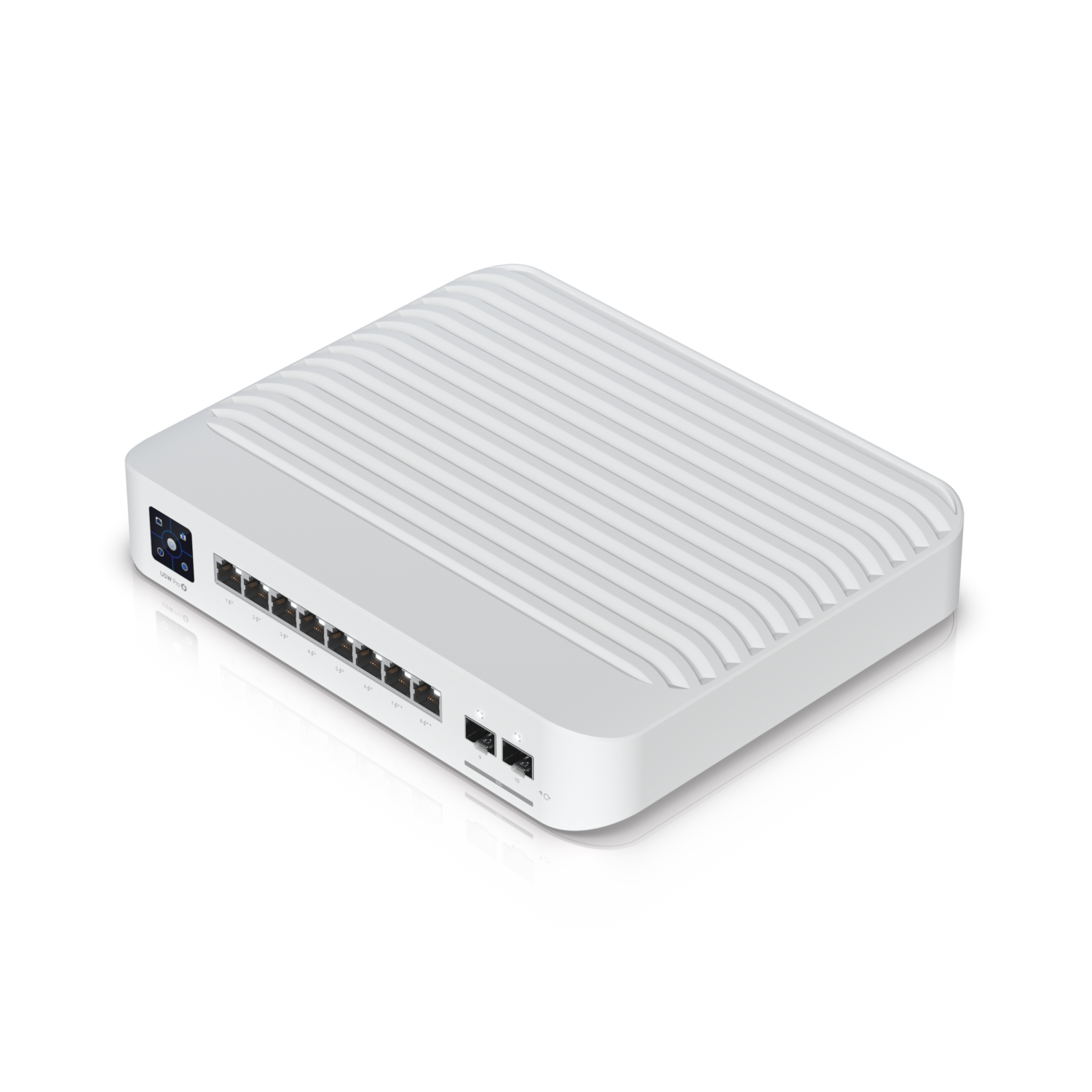

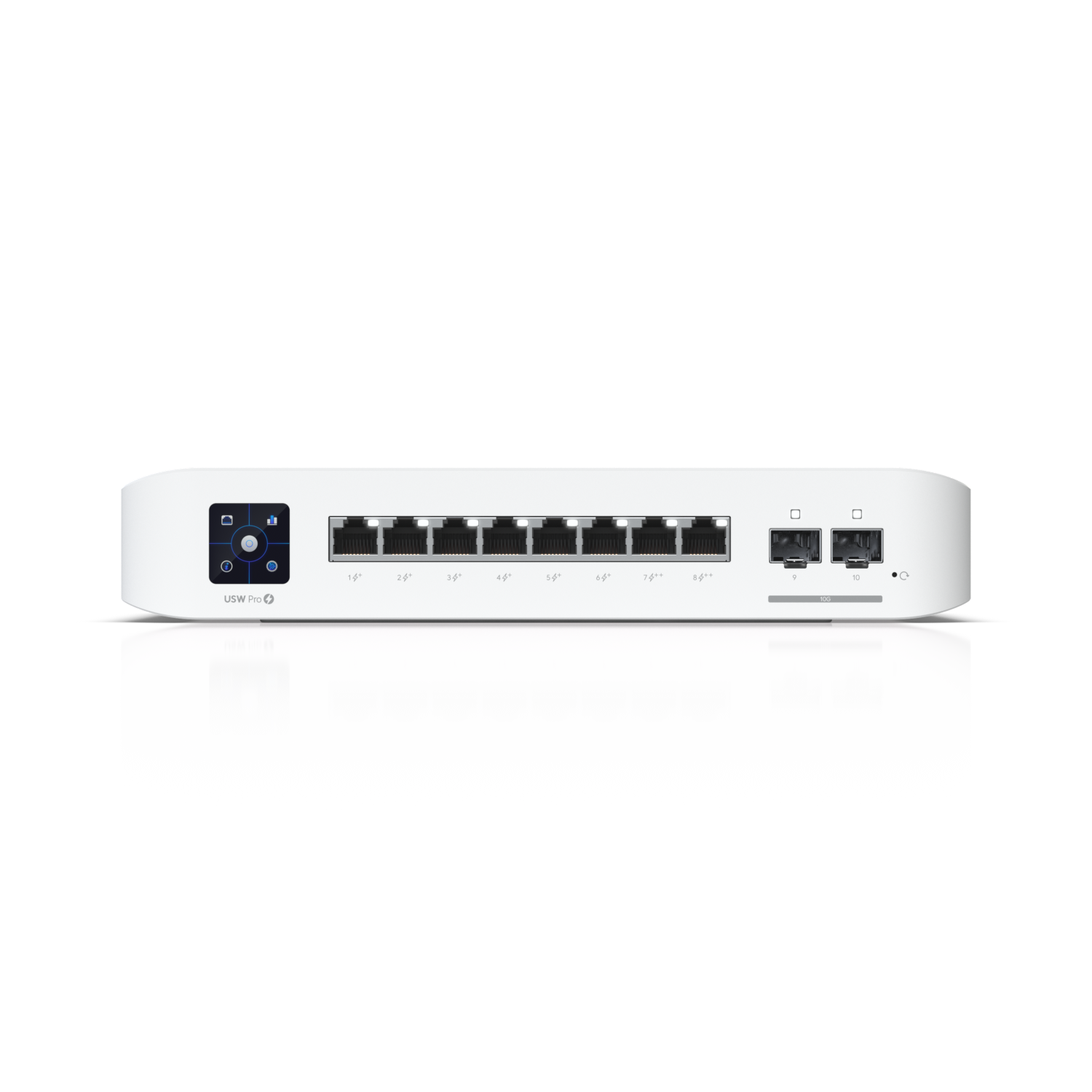

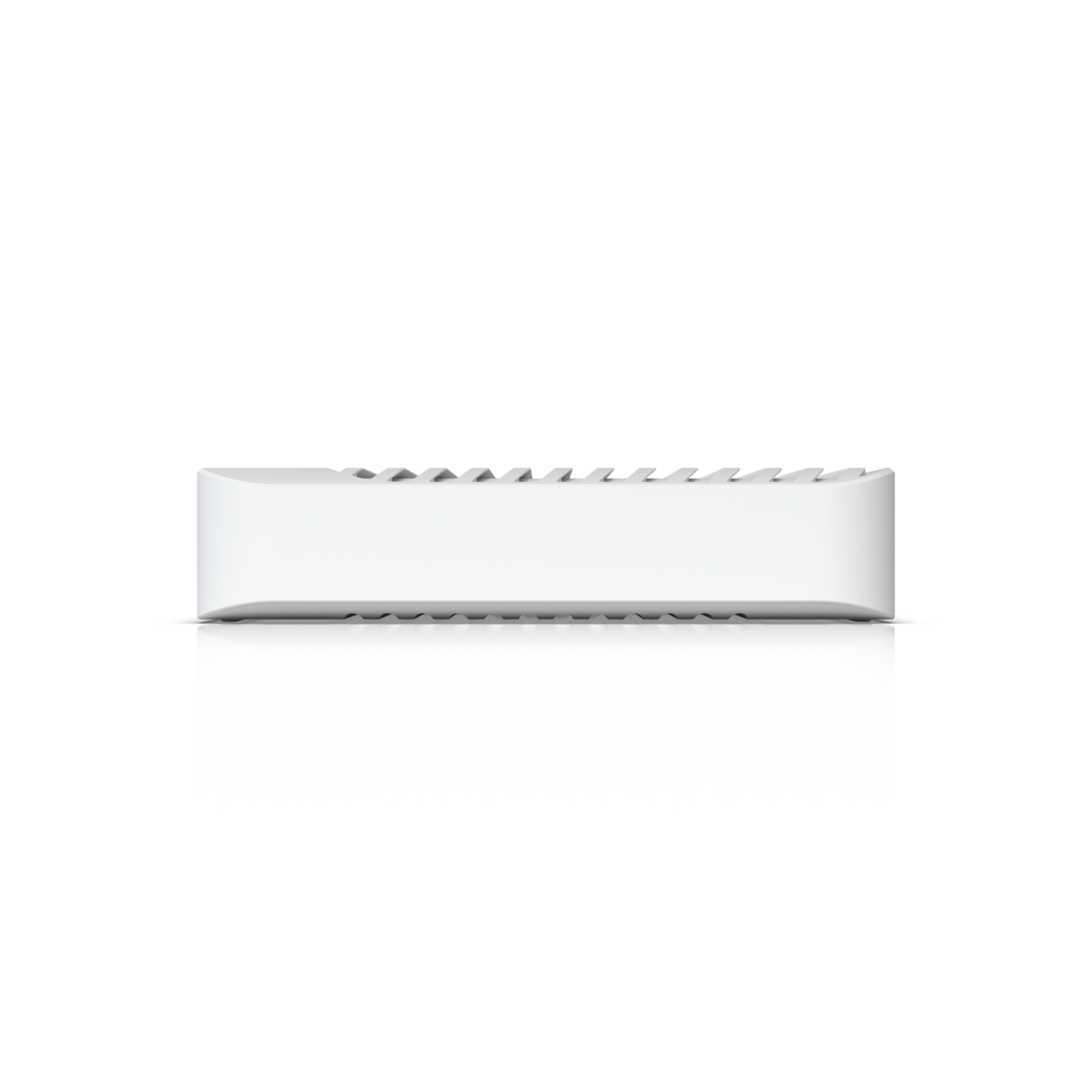

UniFi Pro 8-Port PoE Switch - USW-Pro-8-PoE



Key Features

  • (6) Gigabit RJ45 ports with PoE+

  • (2) Gigabit RJ45 ports with PoE++

  • (2) 1/10G SFP+ ports



Usage

  • UniFi Switch Pro 8 is a fully managed Layer 3 switch with (8) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

  • The UniFi Switch Pro 8 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.

  • The UniFi Switch Pro 8 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy.

  • UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.



Mechanical
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure materials Polycarbonate, metal
Mount material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps
Forwarding rate 41.664 Gbps

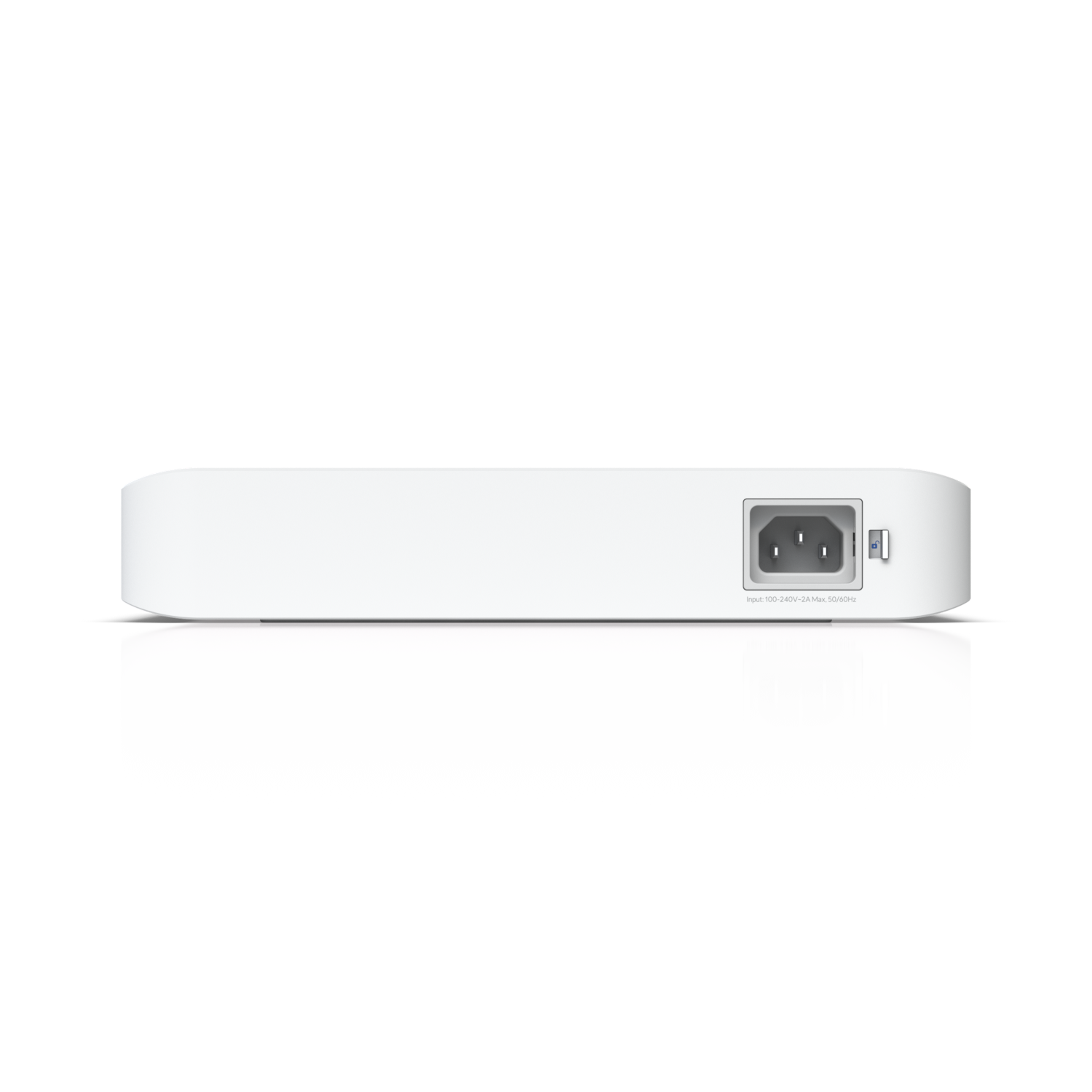

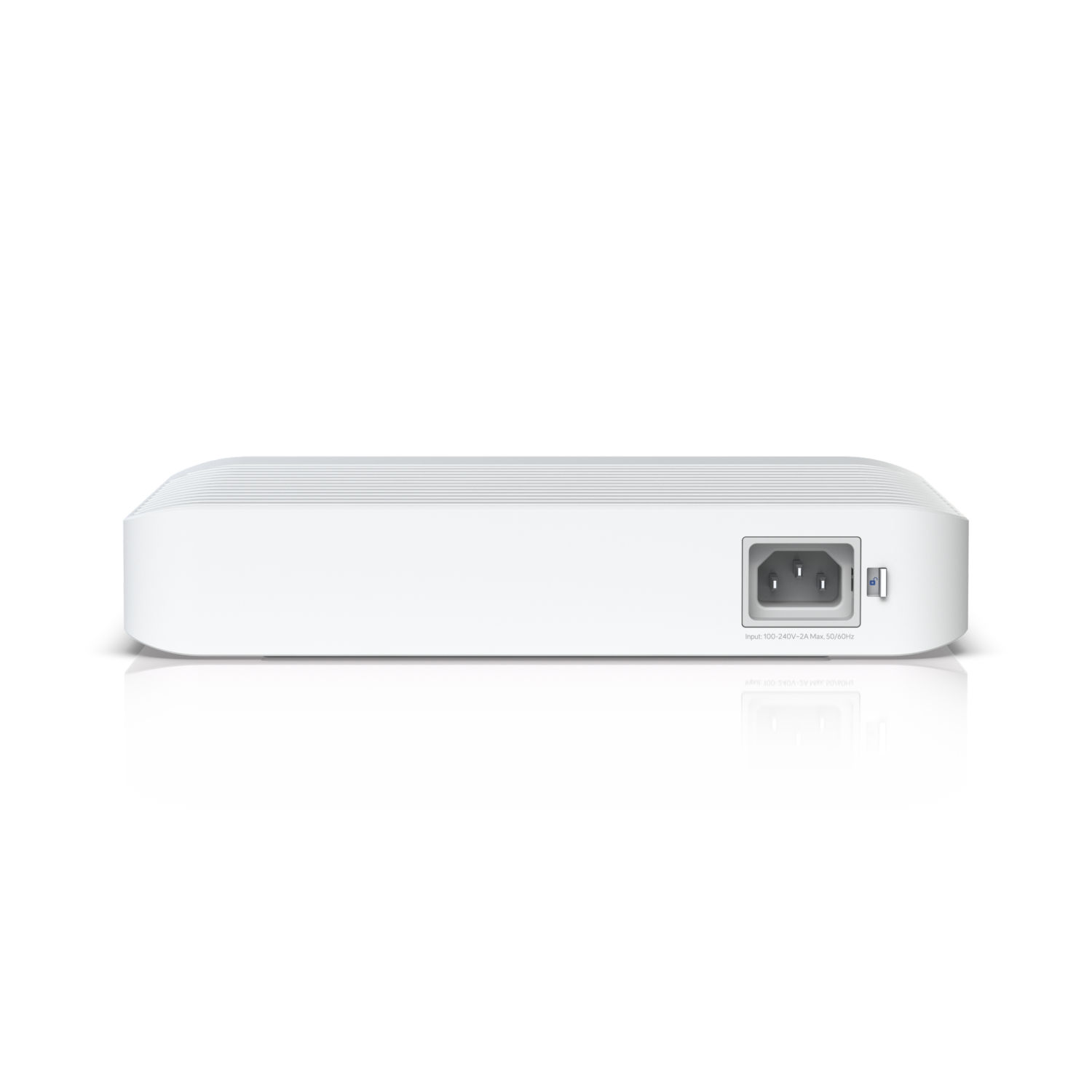

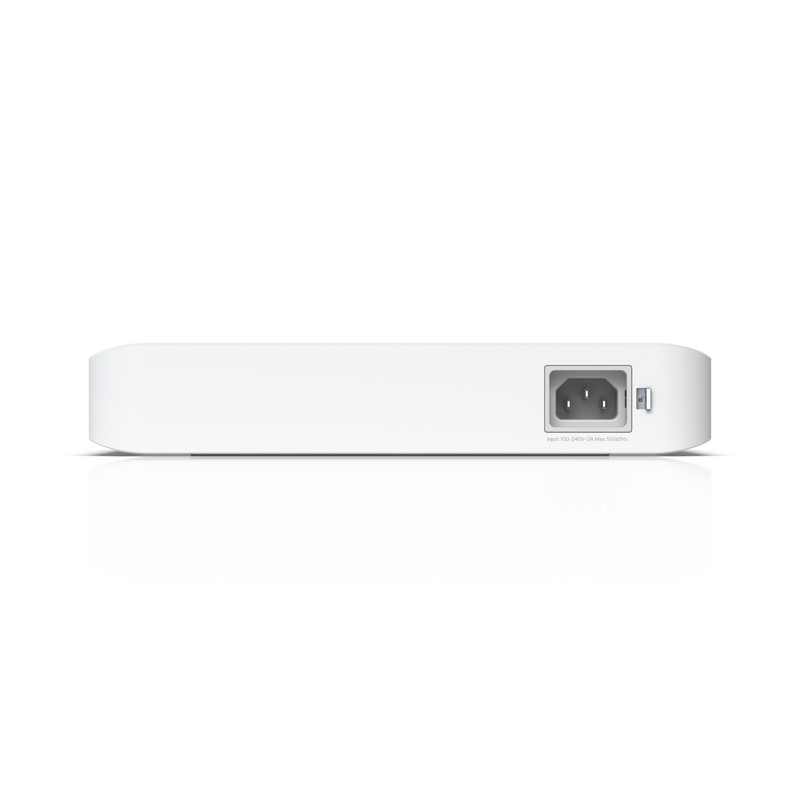

Power method Universal input, 100—240V AC, 2A Max.
Power supply AC/DC, internal
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display (1) 1.3" touchscreen
LEDs RJ45 ports: link/activity
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks

Read More





(USW-Pro-8-PoE)

SKU USW-Pro-8-PoE
Brand Ubiquiti
Shipping Weight 7.5000kg
Shipping Width 0.130m
Shipping Height 0.510m
Shipping Length 0.520m
Shipping Cubic 0.034476000m3
