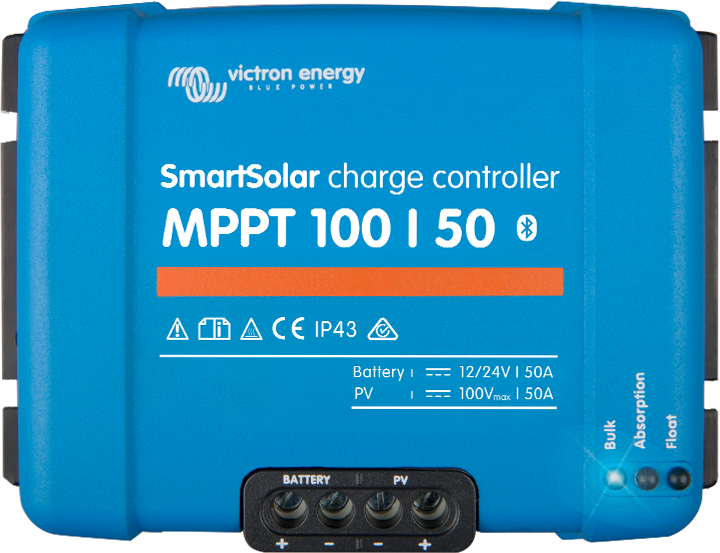

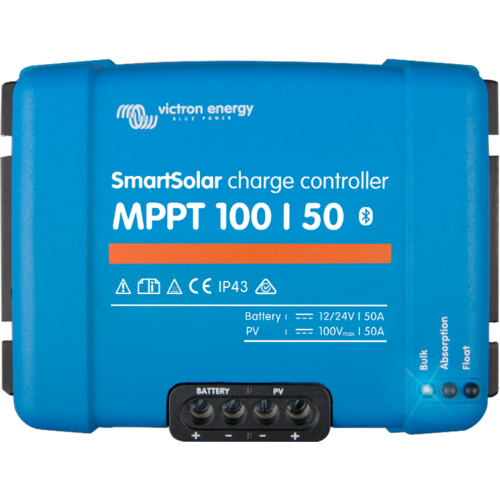

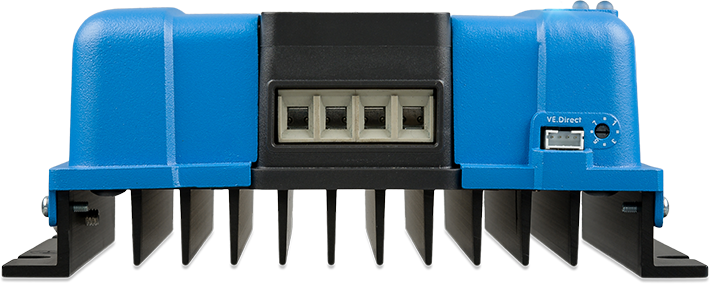

Victron Enegery SmartSolar Charge Controller with Load Output



Key Features

  • Series controller

  • Voltage regulator

  • Automatic battery voltage recognition

  • Ultra-fast Maximum Power Point Tracking (MPPT)

  • Advanced Maximum Power Point Detection in case of partial shading conditions

  • Outstanding conversion efficiency



Usage

  • Victon Energy are the worldwide leader in the field of solar charge controllers

  • The feature packed MPPT series are the highlight in the Victron range of solar controllers

  • Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect

  • The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries

  • Programmable battery charge algorithm

  • Day/night timing and light dimming option

  • Internal temperature sensor

  • Optional external battery voltage and temperature sensing via Bluetooth



Specifications / Frequency



Electrical Specifications



  • Nominal DC voltage: 12/24V

  • Auto Maximum charge current: 30A

  • Load Control: 35A

  • Maximum efficiency: 98%

  • Self Consumption: 12V 30mA & 24v 20mA



Mechanical/Environmental Specifications

  • IP Rating: IP43 Electronics / IP22 Connection Area

  • Colour: Blue

  • Operating Temperature: -30 to +60°C

  • Weight: 1.3kg

  • Dimensions: 130 L x 186 W x 60mm H

  • Warranty: 2 years



Read More



(MPPT-100-30R)

SKU MPPT-100-30R
Brand Victron Energy
Shipping Weight 1.0000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001500000m3
