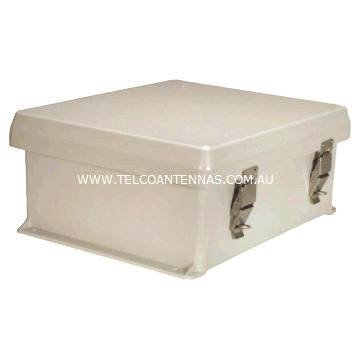

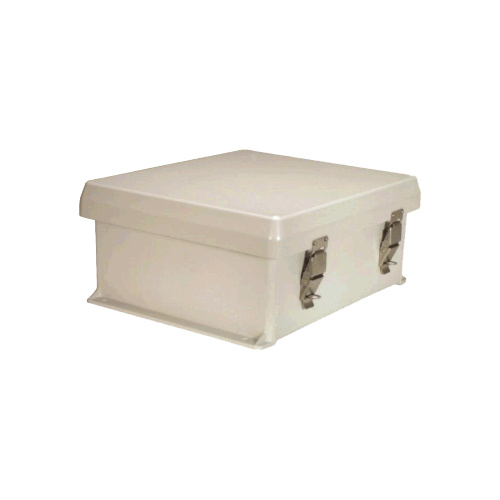

12" Weatherproof Enclosure



Key Features



  • IP66 Rated

  • UL® Listed Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure

  • Stainless steel quick release latches with padlock hasps

  • Blank Aluminium mounting plate

  • NEMA Type 4, 4X / IP66 rated

  • Fully gasketed raised vented lid with removable filters & integral mounting flange

  • One bag of MPS screws shipped loose inside each enclosure.



Usage



  • The NB12 series are a rugged NEMA Type 4X weatherproof enclosure that is ideal for indoor and outdoor applications

  • Constructed from molded fiberglass reinforced polyester, it is well suited for high temperature or corrosive environments

  • The mounting flange allows it to be wall mounted as well as mounted on a flat surface

  • The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps

  • The raised lid is fully gasketed

  • The enclosure material is UV stabilised and comes in machine tool grey

  • The contoured body provides an attractive and contemporary appearance

  • The NB121005-KIT can be used as insulated communications box, terminal wiring box, instrument housing and housing for electrical controls in wet, dusty and corrosive environments.



Specifications



Mechanical/Environmental

  • Outside Dimensions (max): 338 x 287 x 142mm

  • Inside Dimensions: 304 x 254 x 123mm

  • Weight: 2.85kg

  • Flame Rating: UL 94-5V



Read More

(NB121005)

SKU NB121005
Shipping Weight 0.0450kg
Shipping Width 0.370m
Shipping Height 0.190m
Shipping Length 0.390m
Shipping Cubic 0.027417000m3
