14" Weatherproof Enclosure with Vent & DIN Rails

Key Features

• Industrial grade moulded FRP enclosure

• Stainless steel quick release latches with padlock hasps

• NEMA Type 3R, 3RX / IP24 rated

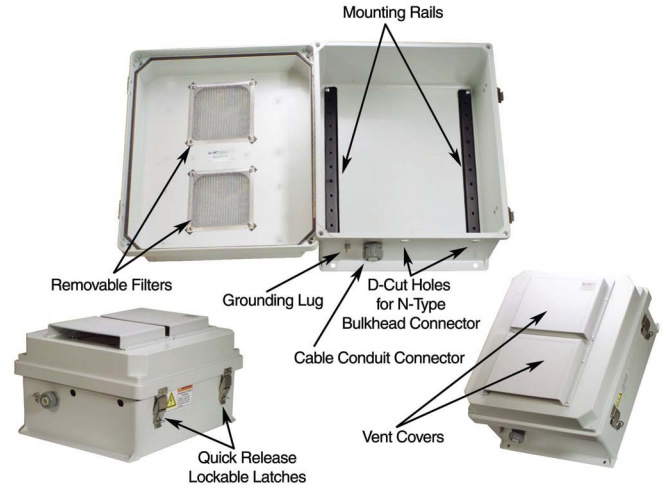

• Fully gasketed raised Vented lid with removable filters & integral mounting flange

• Includes DIN mounts for installing DIN Rails.

Usage

• The box is a rugged weatherproof enclosure that is ideal for indoor and outdoor applications

• Constructed from molded fiberglass reinforced polyester, it is suited for high temperature or corrosive environments

• The mounting flange allows it to be wall mounted as well as mounted on a flat surface

• The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasp

• The raised lid is fully gasketed

• The enclosure material is UV stabilised and comes in machine tool grey

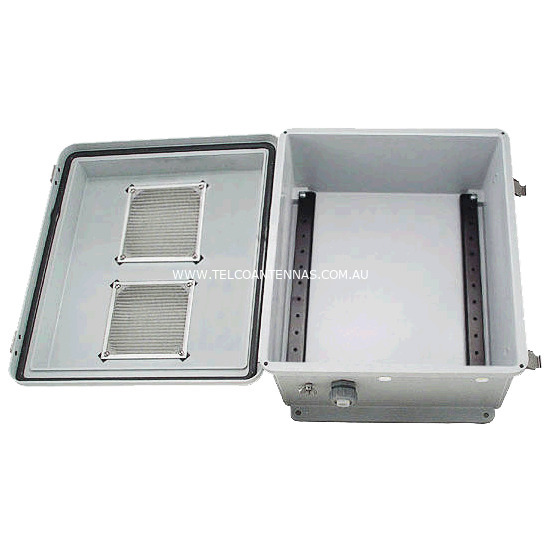

• The aluminum mounting rails installed within the NB141207-00VDR provides provisions to mount DIN3 Rails for installing a number of off-the-shelf DIN Modules and systems

• The HGX-PMT13 Mounting package allows the populated enclosure to be mounted on poles, securely, in and around your site

• The flexibility of DIN rail mounting system and the large selection of modules available offer any number of application solutions indoors and out, even in rainy environments

• The NEMA Type 3R, 3RX / IP24 provides a vented, weatherproof environment, to safely house the control, routing and power systems being designed with the DIN Modules

• The DIN Rails can be adapted to hold other systems and components to accommodate their placement in the enclosure

• The enclosure features holes for two N-Bulkhead connectors or Lightning Protectors, a grounding lug, and a cable conduit connector to accept power or system feeds into the enclosure.

Specifications

Mechanical/Environmental

• Outside Dimensions (max): 393 x 342 x 220mm

• Inside Dimensions: 343 x 292 x 147mm

• Flame Rating: UL 94-5V

• Cable Feed: 1/2”

• Cable Conduit Connector Ratings: NEMA Type 3R; 3RX / IP24

• RoHS Compliant
