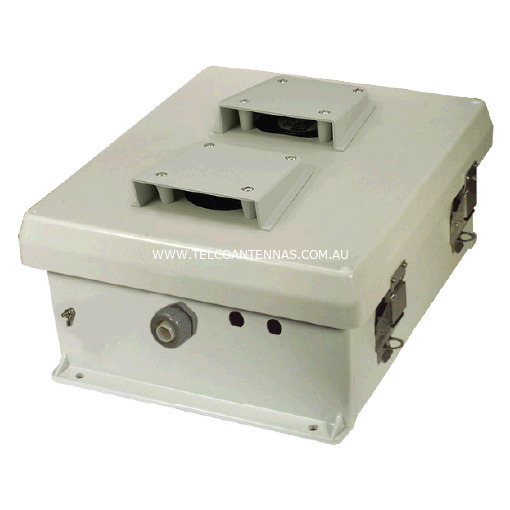

12" Weatherproof Enclosure with Vent & Mount Plate



Key Features



  • Industrial grade moulded FRP enclosure

  • Stainless steel quick release latches with padlock hasps

  • NEMA Type 3R, 3RX / IP24 rated

  • Fully gasketed raised vented lid with removable filters & integral mounting flange

  • Includes drilled aluminum mounting plate with AC socket cutouts.



Usage



  • The NB12 series are rugged weatherproof enclosures that are ideal for both indoor and outdoor applications

  • Constructed from molded halogen free self extinguishing fiberglass reinforced polyester (FRP), it is well suited for high temperature or corrosive environments

  • The integral mounting flange allows it to be wall mounted as well as mounted on a flat surface without the need for extra mounting hardware

  • The fully gasketed lid features two stainless steel quick release latches and a continuous stainless steel hinge

  • The light grey color of the NB12 series is cleaner, cooler and aesthetically pleasing so you can enjoy the physical benefits of better heat reflection and better UV resistance due to the lighter color

  • The contoured body provides an attractive and contemporary appearance

  • The enclosure features holes for two N-Bulkhead Lightning Protectors or Connectors, a grounding lug and cable conduit connector.



vented 12 inch nema FRP enclosure weatherproof



Specifications



Mechanical/Environmental



  • Mounting Plate Material: 2.5mm Anodised Aluminum

  • Mounting Plate Dimensions: 305 x 232mm

  • Outside Dimensions (max): 388 x 287 x 142mm

  • Inside Dimensions: 305 x 254 x 134mm

  • Weight: 3.4kg

  • Flame Rating: UL 94-5V

  • Cable Feed: 1/2”

  • Cable Conduit Connector Ratings: NEMA Type 3R; 3RX / IP24

  • RoHS Compliant.



Read More



(NB121005-00V)

SKU NB121005-00V
Shipping Weight 0.0450kg
Shipping Width 0.370m
Shipping Height 0.190m
Shipping Length 0.390m
Shipping Cubic 0.027417000m3
