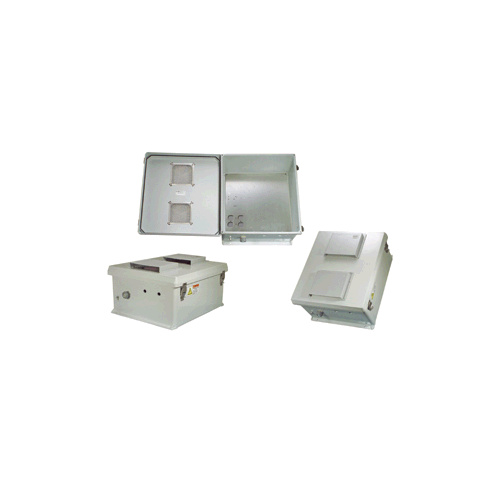

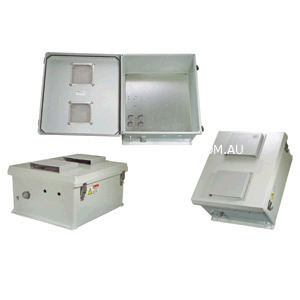

18" Weatherproof Enclosure with Vent & Mount Plate



Key Features



  • Industrial grade moulded FRP enclosure

  • Stainless steel quick release latches with padlock hasps

  • NEMA Type 3R, 3RX / IP24 rated

  • Fully gasketed raised vented lid with removable filters & integral mounting flange

  • Includes drilled aluminum mounting plate with AC socket cutouts.



Usage



  • The HW-N18-V enclosure is a rugged, larger sized weatherproof enclosure that is ideal for both indoor and outdoor applications

  • Constructed from moulded fibreglass, it is well suited for high temperature or corrosive environments

  • Can be wall mounted or mounted on a flat surface

  • The box can be pole mounted with the optional pole mounting hardware kit

  • The fully gasketed lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps

  • The enclosure material is UV stabilised and comes in machine tool grey

  • The enclosure features holes for two N-Bulkhead lightning protectors or connectors, a grounding lug and cable conduit connector.



fibreglass reinforced polymer industrial enclosure





Mechanical/Environmental Specifications



  • Mounting Plate Material: 2.5mm Anodised Aluminum

  • Mounting Plate Dimensions: 426 x 375mm

  • Outside Dimensions (max): 495 x 444 x 254mm

  • Inside Dimensions: 449 x 399 x 216mm

  • Flame Rating: UL 94-5V

  • Cable Feed: 1/2”

  • Cable Conduit Connector Ratings: NEMA Type 3R; 3RX / IP24

  • RoHS Compliant.



Read More





(HW-N18-00V)

SKU HW-N18-00V
Shipping Weight 9.5000kg
Shipping Width 0.470m
Shipping Height 0.400m
Shipping Length 0.390m
Shipping Cubic 0.073320000m3
