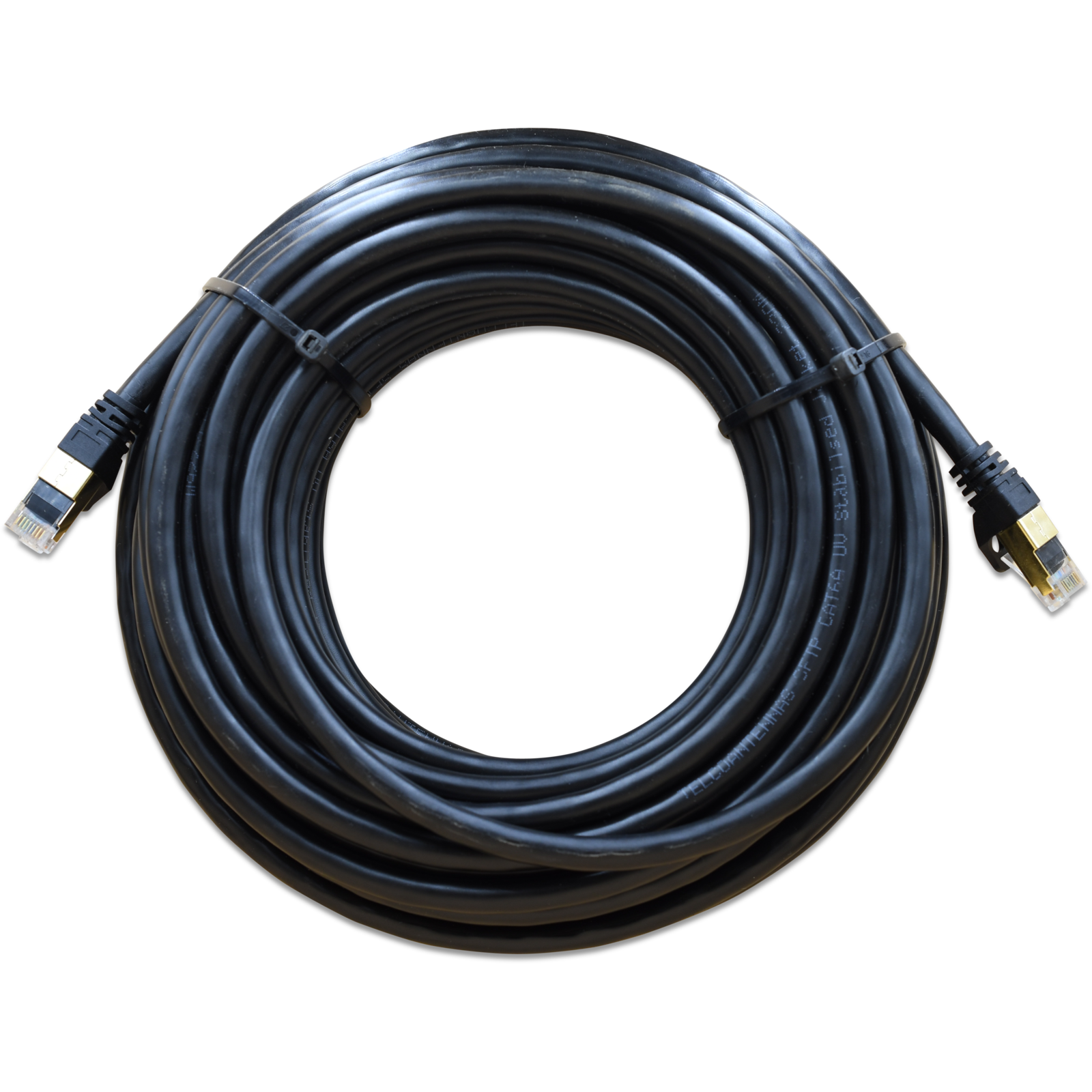

WildCat 15m Cat6 Outdoor F/UTP Shielded Ethernet Cable



  • We developed the Wildcat series specifically for outdoor microwave and point to point/multipoint networking

  • It is the only compliant shielded Cat6 outdoor-rated cable available in Australia.



Key Features



  • Tough, thick black UV-stable outer jacket

  • 1000BASE-T Certified Category 6

  • F/UTP foil shielded twisted pair

  • 8P8C shielded RJ45 modular connectors

  • Anti-Crosstalk Divider

  • TIA/EIA 568-B Wiring

  • ESD drain for outdoor installations

  • Reduced EMI crosstalk and improved SNR.



Usage



  • Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6 F/UTP Ethernet cables

  • Heavily shielded from EMI/ESD and sporting a thick outdoor jacket (6.3mm OD), this cable series is designed for installation in exposed and harsh environments, as well as electrically-noisy indoor environments

  • Wildcat Outdoor Cat6 cables are fully ACMA S008:2010 compliant and can be legally installed under your Open Cabling licence.





Specifications / Frequency

Mechanical Specifications

Standards

YD/T 1019-2013, TIA-568-C.2

Cable Specifications

4x2x0.56mm

Conductor Material

BC

Conductor Diameter

0.56mm (±0.005mm)

Insulation Material

HDPE

Insulation Diameter

1.00mm (±0.03mm)

Shielding Material

ALP

Drain Wire Material

CCA

Drain Wire Diameter

0.5mm

Jacket Material

PE

Jacket Surface

Smooth, Clean, Shiny

Jacket Colour

Black

Jacket Thickness

0.55mm (±0.05mm)

Jacket Diameter

6.3mm  (±0.4mm)



Electrical Specifications

Minimum Single Bending Radius

51mm

1.0-100.0MHz Characteristic Impedance

100±15

1.0-100.0MHz Delay Difference (20°C)

<45ns/100m

DC Resistance (20°C)

7.00

Operating Temperature Range

-20°C to +60°C



Read More

ACMA Austel compliant LAN ethernet cables



(C6-UV-15)

SKU C6-UV-15
Brand Telco Antennas
Shipping Weight 0.7900kg
Shipping Width 0.180m
Shipping Height 0.065m
Shipping Length 0.180m
Shipping Cubic 0.002106000m3
