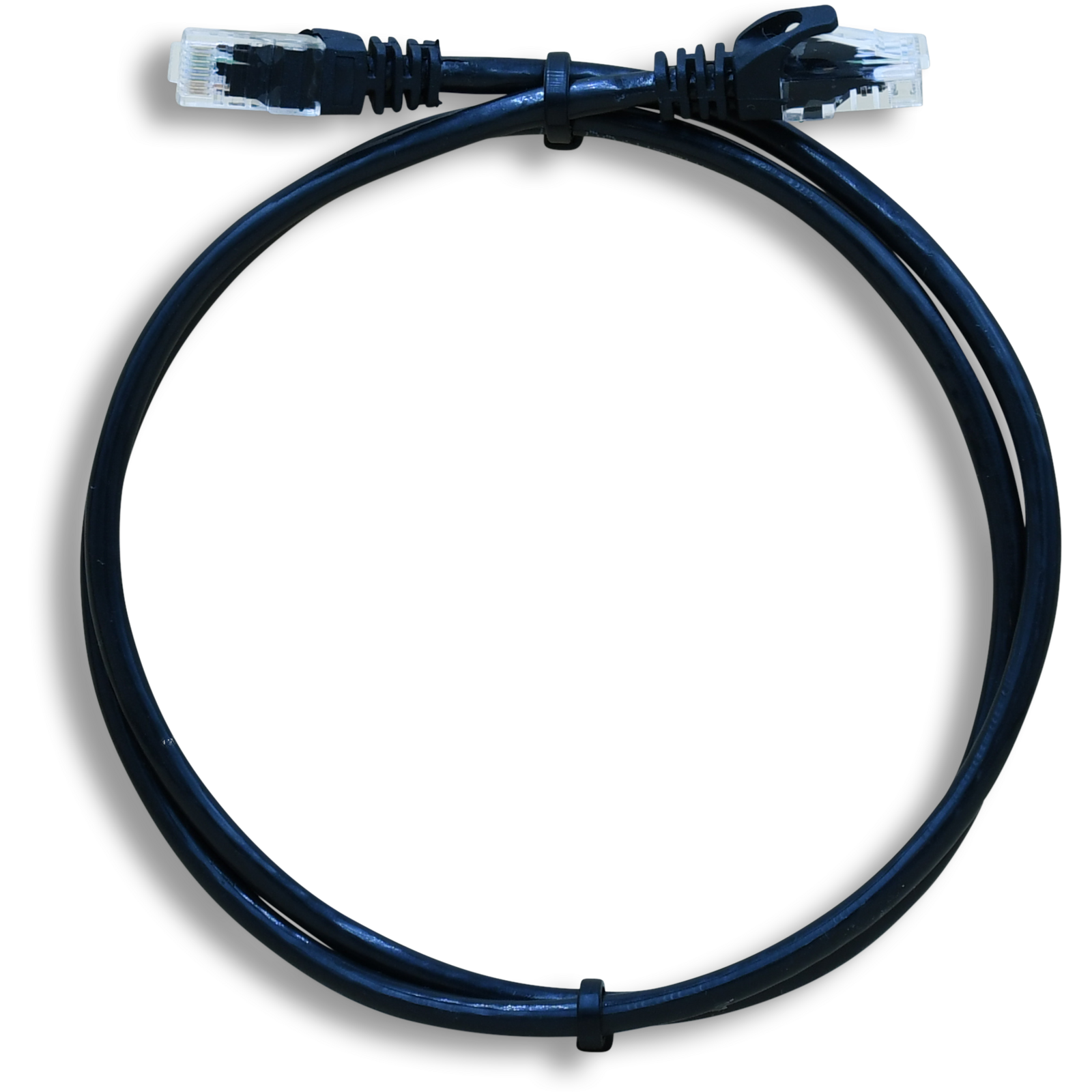

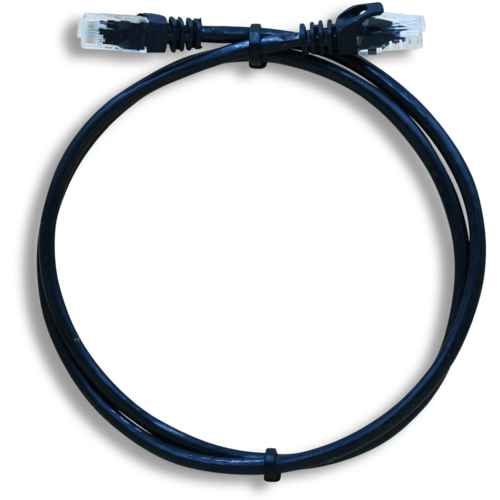

WildCat 1m Cat6 Outdoor UTP Shielded Ethernet Cable



  • We developed the Wildcat series specifically for outdoor microwave and point to point/multipoint networking



Key Features



  • Tough, thick black UV-stable outer jacket

  • Ultra high speed 1Gbps Category 6

  • Unshielded twisted pair

  • 8P8C shielded RJ45 modular connectors

  • Snagless moulded strain relief plugs

  • Reduced crosstalk and improved SNR.



Usage



  • Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6 UTP Ethernet cables

  • This Cat 6 UTP cable is designed for high performance networks where maximum speeds and reliability are required

  • The moulded snagless strain relief plug design, avoids cable snags and protects the connector from damage

  • Wildcat Outdoor Cat6 cables are fully ACMA S008:2010 compliant and can be legally installed under your Open Cabling licence.




Specifications / Frequency

Mechanical Specifications

Standards

YD/T 1019-2013, TIA-568-C.2

Cable Specifications

4x2x0.56mm

Conductor Material

OFC

Conductor Diameter

0.56mm (±0.005mm)

Insulation Material

HDPE

Insulation Diameter

1.00mm (±0.03mm)

Separate

Yes

Mylar Tape

Yes

Rip Cord

Yes

Jacket Material

PE

Jacket Surface

Smooth, Clean, Shiny

Jacket Colour

Black

Jacket Thickness

0.55mm (±0.05mm)

Jacket Diameter

6.1mm  (±0.4mm)



Electrical Specifications

Minimum Single Bending Radius

49mm

1.0-100.0MHz Characteristic Impedance

100±15

1.0-100.0MHz Delay Difference (20°C)

<45ns/100m

DC Resistance (20°C)

7.00

Operating Temperature Range

-15°C to +65°C



Read More

  • Specification Sheet



ACMA Austel compliant LAN ethernet cables



(Cat6-UTP-1)

SKU Cat6-UTP-1
Brand Telco Antennas
Shipping Weight 0.0480kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.013m
Shipping Cubic 0.000032000m3
