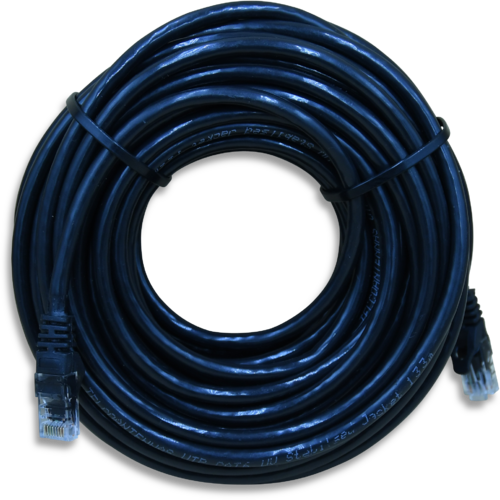

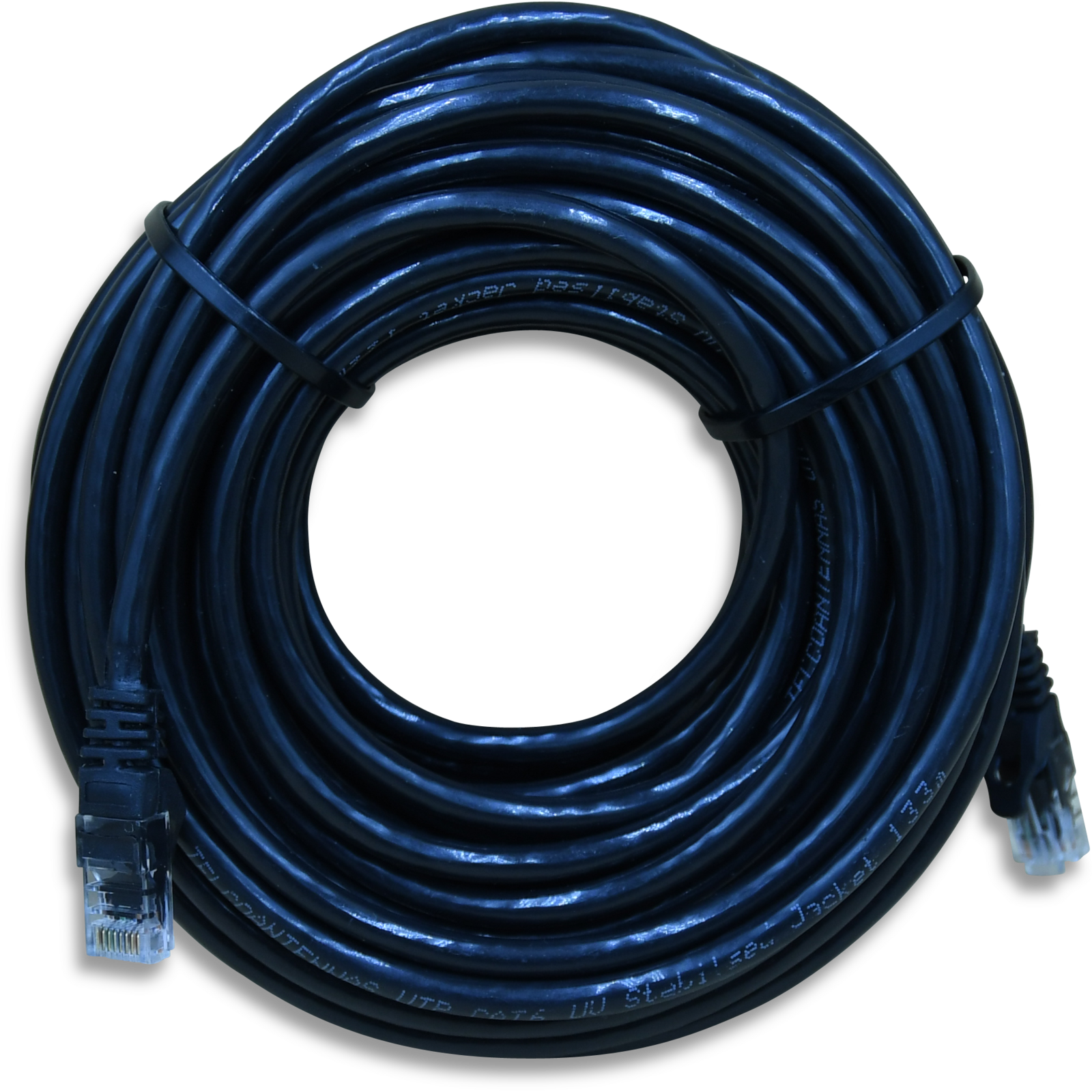

WildCat Cat6 UTP 15m Ethernet Cable - RJ45 - UV Rated Outdoor Cable
SKU: Cat6-UTP-15
WildCat 15m Cat6 Outdoor UTP Shielded Ethernet Cable
-
We developed the Wildcat series specifically for outdoor microwave and point to point/multipoint networking
Key Features
-
Tough, thick black UV-stable outer jacket
-
Ultra high speed 1Gbps Category 6
-
Unshielded twisted pair
-
8P8C shielded RJ45 modular connectors
-
Snagless moulded strain relief plugs
-
Reduced crosstalk and improved SNR.
Usage
-
Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6 UTP Ethernet cables
-
This Cat 6 UTP cable is designed for high performance networks where maximum speeds and reliability are required
-
The moulded snagless strain relief plug design, avoids cable snags and protects the connector from damage
-
Wildcat Outdoor Cat6 cables are fully ACMA S008:2010 compliant and can be legally installed under your Open Cabling licence.
Specifications / Frequency
Mechanical Specifications |
|
Standards |
YD/T 1019-2013, TIA-568-C.2 |
Cable Specifications |
4x2x0.56mm |
Conductor Material |
OFC |
Conductor Diameter |
0.56mm (±0.005mm) |
Insulation Material |
HDPE |
Insulation Diameter |
1.00mm (±0.03mm) |
Separate |
Yes |
Mylar Tape |
Yes |
Rip Cord |
Yes |
Jacket Material |
PE |
Jacket Surface |
Smooth, Clean, Shiny |
Jacket Colour |
Black |
Jacket Thickness |
0.55mm (±0.05mm) |
Jacket Diameter |
6.1mm (±0.4mm) |
Electrical Specifications |
|
Minimum Single Bending Radius |
49mm |
1.0-100.0MHz Characteristic Impedance |
100±15 |
1.0-100.0MHz Delay Difference (20°C) |
<45ns/100m |
DC Resistance (20°C) |
7.00 |
Operating Temperature Range |
-15°C to +65°C |
Read More
- Specification Sheet
(Cat6-UTP-15)
SKU | Cat6-UTP-15 |
Brand | Telco Antennas |
Shipping Weight | 0.6000kg |
Shipping Width | 0.150m |
Shipping Height | 0.050m |
Shipping Length | 0.113m |
Shipping Cubic | 0.000847500m3 |
