WildCat Cat6a Outdoor UV SF/TP 0.5m Ethernet Cable - ESD Shielded RJ45
SKU: C6a-SFTP-05

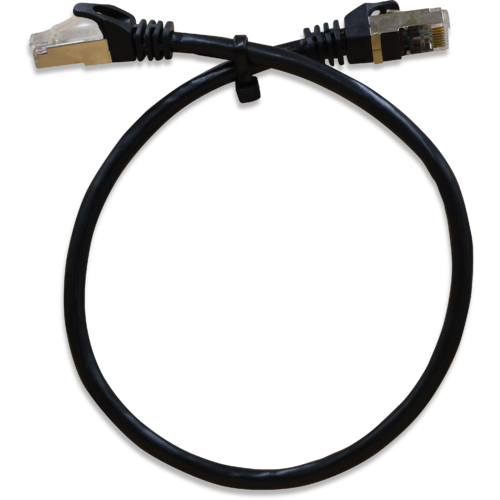

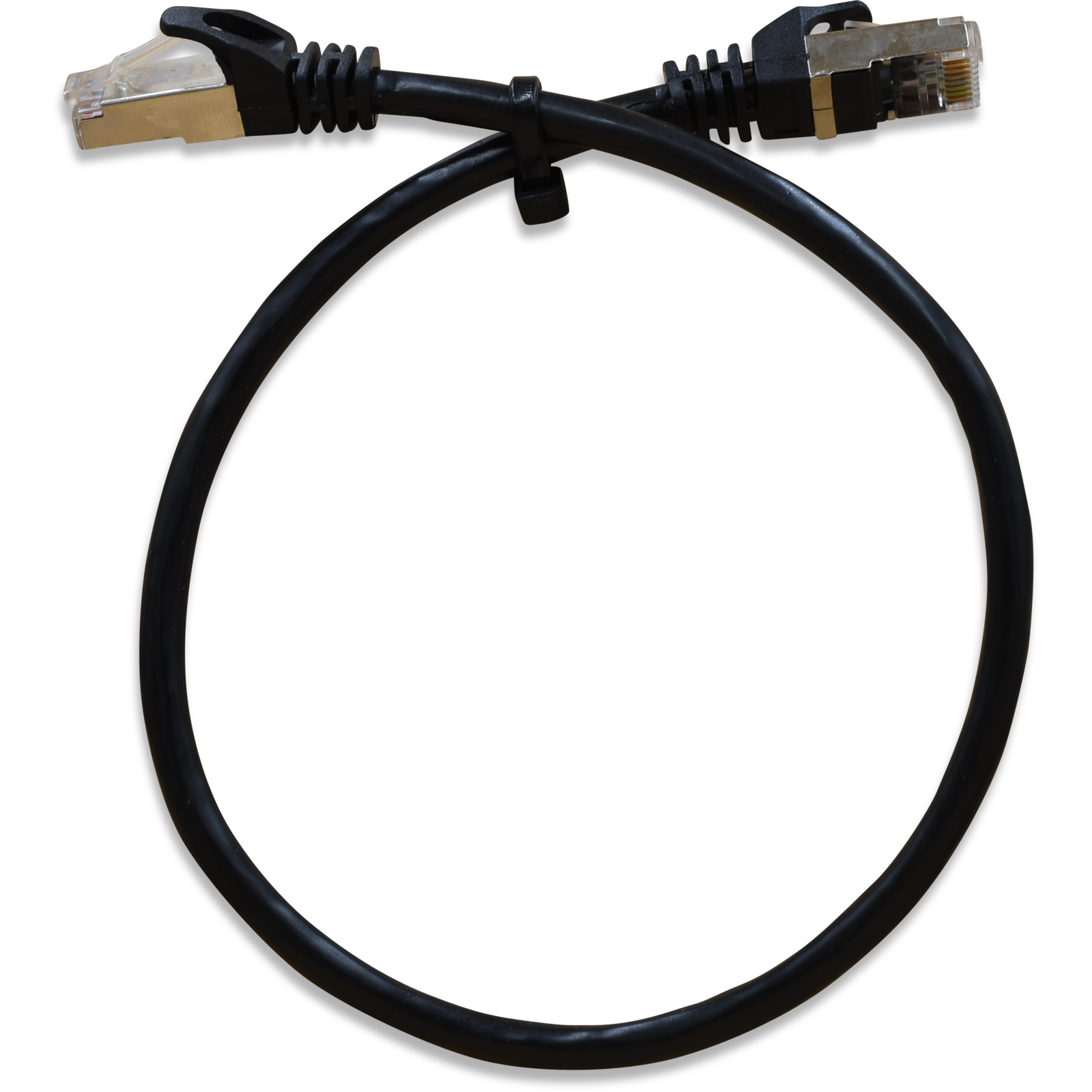

WildCat 0.5m Cat6a Outdoor SF/TP Shielded Ethernet Cable
-
We developed the Wildcat series specifically for outdoor microwave and point to point/multipoint networking
Key Features
-
Tough, Thick Black UV-stable Outer Jacket
-
10GBASE-T
-
SF/TP - Shielded Foil Elements with a Braid Screen
-
Shielded RJ45 modular connectors
-
Anti-Crosstalk Divider
-
TIA/EIA 568-B Wiring
-
ESD Drain for Outdoor Installations
-
Reduced EMI Crosstalk and Improved SNR
Usage
-
Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6a SF/TP Ethernet cables
-
Heavily shielded from EMI/ESD and sporting a thick outdoor jacket (7.4mm OD), this cable series is designed for installation in exposed and harsh environments, as well as electrically-noisy indoor environments
-
Wildcat Outdoor Cat6 cables are fully AS/NZS 11801.1:2019 compliant and can be legally installed under your Open Cabling licence.
Specifications / Frequency
Mechanical Specifications |
|
Standards |
ANSI/TIA-568-C.2 IEC 61156-5 EN 50288-10-1 EN 50173 ISO/IEC 11801 EN 50575 AS/NZS 11801.1:2019 |
Conductor Material |
99.99% Solid Bare Copper |
Conductor Number |
8C (4Pairs) |
Cable AWG |
23 |
Construction |
1/0.585mm (±0.01mm) |
Shielding Overlap |
Aluminium/Polyester |
Braided Shield |
Tinned Copper |
Insulation Material |
Foam |
Insulation Thickness |
0.37mm |
Insulation Diameter |
1.38mm (±0.05mm) |
Jacket Material |
PE |
Jacket Colour |
Black |
Jacket Thickness |
0.60mm (±0.05mm) |
Jacket Diameter |
7.8mm (±0.3mm) |
Electrical Specifications |
|
Max Conductor DC Resistance |
73Ω/km |
Min. Insulation Resistance |
5000MΩ-km |
1.0-100.0MHz Characteristic Impedance |
100Ω±15 |
1.0-100.0MHz Delay Difference (20°C) |
<45ns/100m |
Pair to Ground Capacitance Unbalance |
<330PF/100m |
Resistance Unbalance Between Pairs |
<4% |
Max Mutual Capacitance |
5.6nF/100m |
Max DC Loop Resistance |
19.2Ω/100m |
Tensile Strength |
>16.5Mpa |
Velocity of Propagation NVP |
78% |
(C6a-SFTP-05)
SKU | C6a-SFTP-05 |
Brand | Telco Antennas |
Shipping Weight | 0.0480kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.013m |
Shipping Cubic | 0.000032000m3 |
