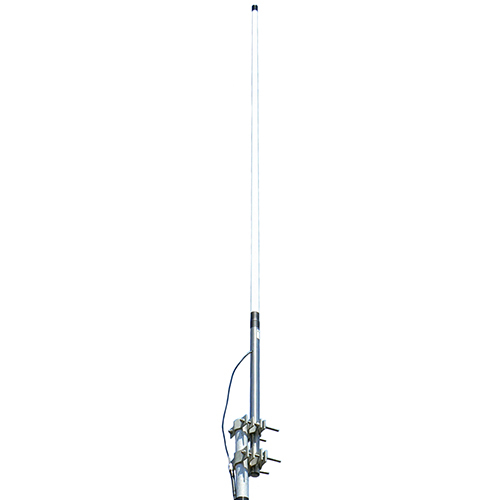

ZCG CMG920-6 High gain ISM/LoRa Collinear Antenna - 915-928 MHz 8.1dBi - 2.5m



Key Features

  • The CMG920-6 mast mount collinear is suitable for high gain wireless data applications within the ISM 915-930MHz frequency range.

  • High Gain 8.1dBi Collinear Base Station Antenna.

  • 530mm Cable Length with an N Female Connector

  • The CMG920-6 is suitable for LoRa AU915-928, AS920-923, AS923-925 and KR920-923 Uplink and downlink applications.

  • Mounting hardware, coaxial feeder cable, connectors and other installation accessories are all available separately.

Features

The CMG920-6 ISM or Industrial, Scientific and Medical band omni-directional collinear is suitable for high gain 900MHz wireless data applications within the 915-928MHz frequency range - including LoRa AU915.

We recommend mounting the CMG920-6 as high on your structure or tower as possible using 2 x TF1-SS or 2 x UAM180L mounting hardware.



Specifications / Frequency



Network Compatibility
Yes/No
ISM (915MHz)
compatible



Electrical Specifications

  • Frequency 915-930 MHz
  • Gain 8 dBi
  • VSWR <1.5:1
  • Polarisation: Vertical
  • Horizontal Beamwidth 360° Omni Directional
  • Vertical Beamwidth 12°
  • Impedance 50 Ohms
  • Max Input Power 20W

Mechanical Specifications

  • Cable: 530mm RG58 - Side Exit from Mount Section
  • Connector N Female
  • Height: 2.45m
  • Weight 2kg
  • Mount Section: 700*38.1mm O.D. - 304 Stainless Steel
  • Mounting Method Mast

Read More





(CMG920-6)

SKU CMG920-6
Shipping Weight 0.0450kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 2.170m
Shipping Cubic 0.021700000m3
