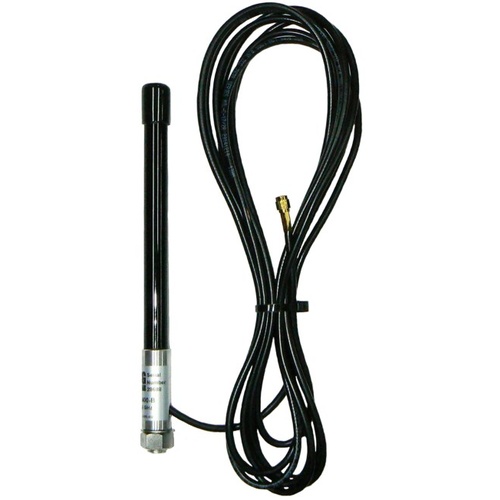

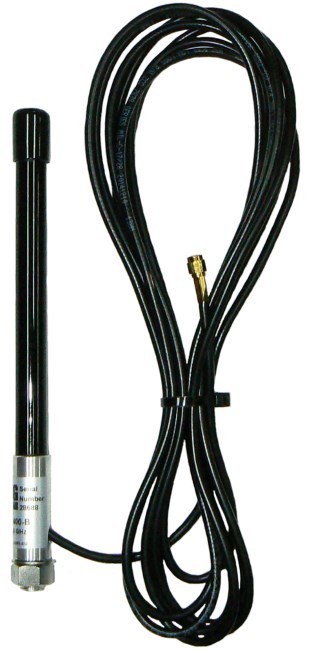

ZCG Scalar Omni-Directional WiFi ISM Collinear Antenna 2.1dBi - 2.4 - 2.5GHz



Key Features



  • Full 2.4 - 2.5GHz band

  • Suits 802.11b/g/n WiFi, Bluetooth and other ISM applications



Usage



  • Indoor and outdoor use

  • We recommend mounting the antenna in an elevated position using a minimum 12.7mm hole or mounting hardware with a 12.7mm 9min) hole.



Specifications / Frequency



Network compatibility Yes/No Gain
802.11 b/g/n WiFi (2400MHz)
compatible
4.5dBi
ISM & Bluetooth (2400MHz)
compatible
4.5dBI



Electrical Specifications



  • Frequency Range: 2400-2500MHz

  • Input Impedance: 50Ω

  • Input Power: 10W

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black fibreglass radome, aluminium ferrule and cable assembly

  • Cable: 5 metres RG58 low loss - side exit from ferrule

  • Connector: SMA Male

  • Weight: 0.15kg

  • Height: 230mm



Read more





(MD2400-B)

SKU MD2400-B
Brand ZCG
Shipping Weight 0.2000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.000625000m3
