ZCG Scalar SGDB-MM-N 6.2dBi Cellular Base Station Antenna



Key Features



  • Covers lower 850 & 900MHz bands at 6.2dBi

  • All other networks (3G 2100MHz and 4G) at 3dBi

  • Ground independent; no metal ground plane is necessary

  • Integrated N Female connector

  • Full brass radiator design

  • 100% Australian made.



Usage



  • This is the ideal antenna for remote telemetry and mobile/semi-mobile stations

  • Unlike some base station antennas which have lossy coaxial cable, this antenna has an integrated N Female connector in its base, allowing for direct attachment of low loss feeder/riser cables

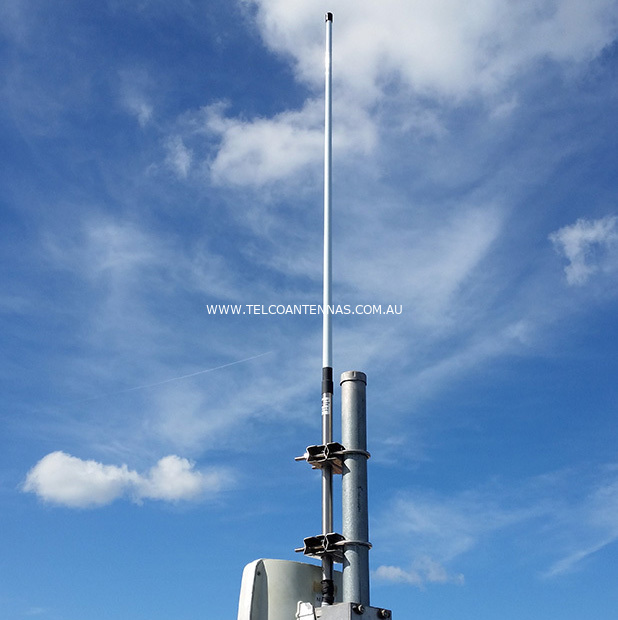

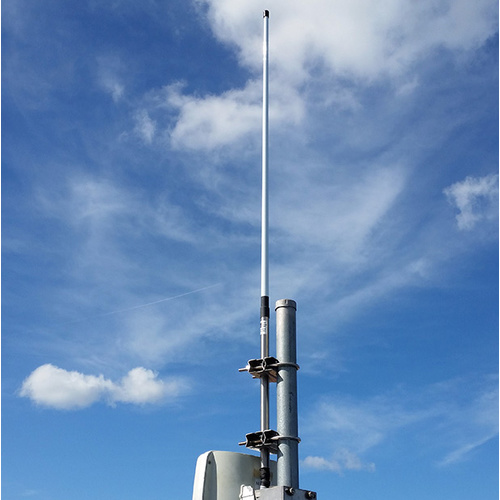

  • Designed specifically for mast mounting, the antenna's high quality stainless steel mounting tube can be mounted using parallel U-bolt clamps, and is also light enough to be mounted by standard hose clamps.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850MHz)
compatible
6.2dBi
New Vodafone Network (850MHz)* *Please check Vodafone Coverage Map.
compatible
6.2dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
6.2dBi
All carriers - calls & text (900MHz)
compatible
6.2dBi
Telstra 4G (1800MHz)
compatible
3dBi
Optus 4G (1800MHz)
compatible
3dBi
All carriers - 3G internet (2100MHz)* Please check your network's Coverage Map.
compatible
3dBi



Electrical Specifications



  • Frequency Range: 824-960MHz & 1710-2170MHz

  • Input Impedance: 50Ω

  • VSWR: <1.6:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 32° & 57°

  • Maximum Power: 30Watts



Mechanical/Environmental Specifications



  • Construction: Fibreglass radome, brass radiating elements, aluminium ferrule

  • Cable: none

  • Connector: Integrated N Female connector

  • Length: 1400mm Weight: 0.90kg



Connection



N Flange panel mount connector



N Female Connector [pictured]



  • This antenna has an integrated N Female connector at the base of the mounting tube. There is no cable supplied.
