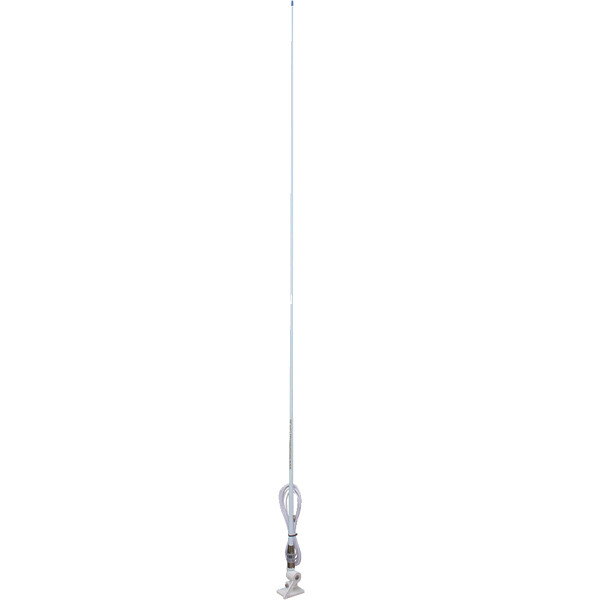

ZCG Scalar DG1600 8.1dBi Deck Mounted Marine Antenna

Key Features

• Suits Optus and all Optus resellers, including: TPG, Amaysim, Virgin Mobile, Boost Mobile, Dodo, Exetel, Internode, GoTalk, iiNet.

• 5m white RG58 cable with FME Female connector

• Full chromed brass ferrule

• Supplied with toughened plastic MM1 Marine Deck Mount

• All white fiberglass construction

• Australian made.

Usage

• Stay connected on the water by using this antenna with your mobile phone and wireless broadband modem

• With an 8.1 dBi gain, the DG1600 Optus 900MHz marine antenna offer the maximum gain and reception range practical in a broadband cellular mobile phone antenna

• The single piece white fibreglass radome stands 2.2 metres tall, identical to other models in the marine range

• These antennas are matched internally by a unique transforming printed circuit board

• This antenna is also suitable for Vodafone 2G services (voice and text messaging)

• All components used are of the highest quality to ensure long term survival in the harsh marine environment

• These antennas will deliver reliable performance for many years

• The MM1 folding deck mount supplied as standard is constructed from toughened plastic

• This base folds down in two directions and also swivels in the opposite plane by loosening the stainless steel pivot bolt

• This versatility allows the antenna to be mounted in a variety of positions on any flat surface and at any angle using four screws or bolts.

Specifications / Frequency

Australian Network Compatibility	Yes/No	Gain
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		8.1dBi
All other networks		-

Electrical Specifications

• Frequency Range: 890-960MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Maximum Power: 50Watts

• Vertical Beamwidth: 13°

Mechanical/Environmental

• Construction: White fibreglass radome, chrome brass ferrule

• Cable: 5m white RG58 coaxial cable

• Connector: FME Female.

• Temperature: -40°C +70°C

• Weight: 1kg (including mount)

• Height: 2.2m

• Mounting: MM1 deck mount (supplied)

Connection

• This antenna has a 5m cable that terminates with an FME Female connector

• The FME Female connector is the most common type of connector for mobile antennas and mates with the FME Male connector found on patch leads and phone cradles.

• Please contact us if you would like a shorter length of cable, or a different connector and we will customise this antenna for you.

A heads up!

Special Delivery Information:

• This product is over 2m in length and must be sent by specialist freight companies

• Understandably, a 2m long cardboard tube can be very easily damaged, so this product is shipped in a custom made PVC enclosure

• Due to the costs incurred, shipping of this item is expensive, irrespective of whether we're shipping it to Sydney metro, or to Canada.

Read More

• Specification Sheet
