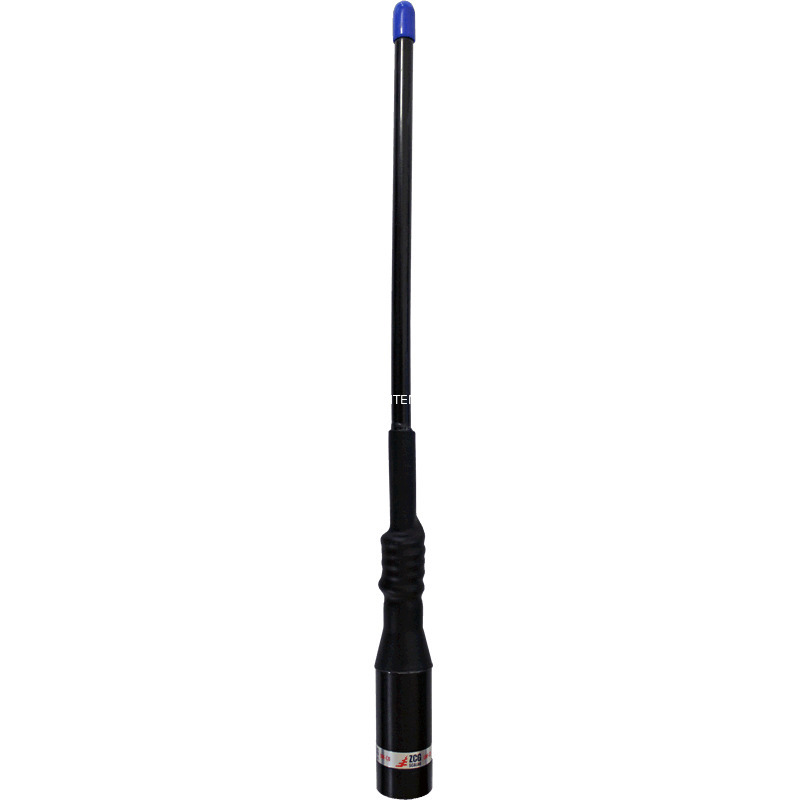

ZCG Scalar Heavy Duty 2.1dBi UHF CB Antenna

Key Features

• Replacement Flexi-Whip

• Full UHF 477MHz 80 channel radio band

• Quick removable whip (interchangable)

• Ground independent; no metal ground plane is necessary

• Highly flexible quick fit design

• 100% Australian made.

Usage

• For owners of our large high gain ZN3 bull bar mount 477 MHz UHF CB antennas, ZN3-77-04-TP is the perfect substitute antenna top

• When travelling into bush areas where a tall antenna might be subject to damage, or in city areas where high gain is not necessary, then simply interchange your antenna top with this convenient 40 cm “Quick Fit” 2.1 dBi model

• The black delrin and UV stabilised PVC antenna top is highly flexible and virtually unbreakable

• It will survive hard knocks and the roughest treatment

• The UHF male connector inside the base fits directly onto any of the spring bases supplied with our ZN3-77-12, ZN3-77-11 or ZN3-77-10 bull bar mount 477 MHz UHF CB radio antennas.

Which brand do I need - RFI or ZCG?

• ZCG Scalar bullbar antennas are designed with solid copper radiating elements, designed to last on even the toughest of corrugated roads

• You'll typically see RFI brand antennas on fleet and emergency vehicles in regional and rural areas, but if you frequent unsealed roads or rough terrain ZCG's bullbar antenna series are the preferred option

• The ZN3 antenna's solid copper internals are practically unbreakable, where as circuit-board designs can fracture with extended use on extremely rough terrain.

Installation

Electrical Specifications

• Frequency Range: 476-477MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Maximum Power: 100Watts

Mechanical/Environmental Specifications

• Construction: Black delrin and UV stabilised PVC radome

• Cable: None

• Connector: Integrated UHF connector

• Length: 400mm

• Weight: 0.3kg

Connection

• This antenna has an integrated UHF connector designed specifically for the ZN3 series antennas.
