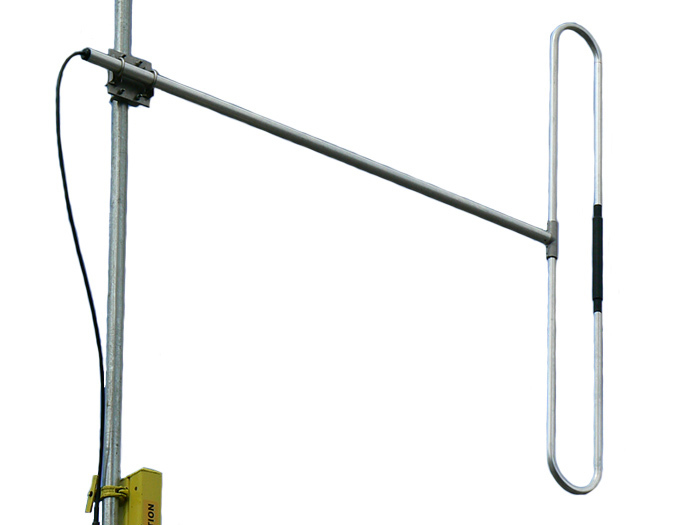

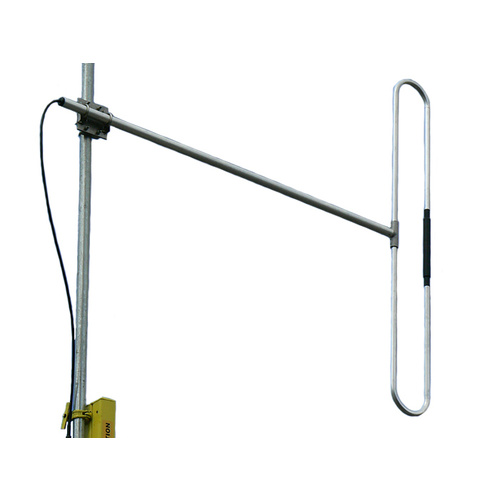

ZCG Scalar Sidemount Dipole - Air Band VHF



Key Features



  • Entire band 118-136MHz factory tuned

  • Fully welded aluminium construction

  • 100% Australian made.



Usage



  • The exceptionally broad bandwidth and reliable construction make sidemount dipoles perfect for use as a base station antenna

  • Nominally 0dBd gain for a single bay, approximately 2.3dBd of forward gain results by using the mount pole as a reflector at 0.2 wave spacing

  • Higher gain and power can be achieved by mounting dipoles in stack array formations

  • Mast to tower distance can be varied to produce the desired radiation pattern

  • ZCG Scalar can supply the necessary power divider or phasing harness, branch feeder cables and connectors

  • Radiating elements operate at DC ground potential to eliminate static noise and interference

  • An N-Female connector rated for up to 250 watts power is fitted to the cable tail

  • A right-angle mast mounting clamp, coaxial feeder cable, connectors and other installation accessories are all available separately.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Air Band (118-136MHz)
compatible
2.15dBi (0dBd)



Electrical Specifications



  • Frequency Range: 118-136MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (better than 15dB)

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 250Watts



Mechanical/Environmental Specifications



  • Construction: Welded Aluminium

  • Cable: 1m RG213 coaxial

  • Connector: N Female

  • Dipole Height: 1.035m

  • Weight: 2.5kg

  • Wind Load at 160kph: 1.27kg

  • Mounting: Not supplied, ZCG Y2300 clamp recommended



Connection



  • This antenna has a 1m RG213 cable that terminates with an N Female connector.

n female connector

N Female Connector [pictured]



  • If you would like a shorter length of cable, or a different connector - please contact us so we can customise this antenna for you.



A heads up!

  • Stock Information: This item is not always stored at our Queensland warehouse, it is however, available within 24-48 hours from order.
