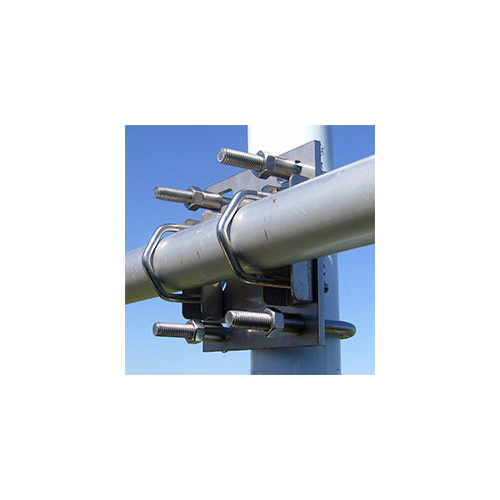

Y2300SS-XL Stainless Right Angle Clamp Antenna Bracket



Key Features



  • Suits large Yagi or sidemount dipole antennas

  • For masts 70-90mm in diameter

  • Heavy duty clamp

  • 90 degree mounting only.



Usage



  • Suitable for all large, heavy Yagi and sidemount dipole antennas with a boom 32 - 52mm in diameter

  • Mounting Yagi antennas is a relatively straight forward exercise - clamp it on, screw the connectors together and walk away smiling!

  • Selecting the correct clamp will ensure your antenna maintains its position for many years to come.



A heads up!



  • Using the wrong clamp or not using a bracing kit can lead to failure of the antenna and costly network downtime

  • Using the wrong clamp can lead to a range of issues, the most simple of which is antenna misalignment due to a slipping clamp

  • In extreme cases, the boom of the antenna can break due to increased stresses induced by the constant antenna vibration on a localised point from an inappropriate clamp.



Mechanical Specifications



  • Construction: All stainless steel components

  • Boom Diameter: 32-50mm diameter

  • Mast Diameter: 70-90mm diameter

  • Mounting Orientation: Right-Angle 90 degree

  • Weight: 2.0kg



Read More





(Y2300SS-XL)

SKU Y2300SS-XL
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.000375000m3
