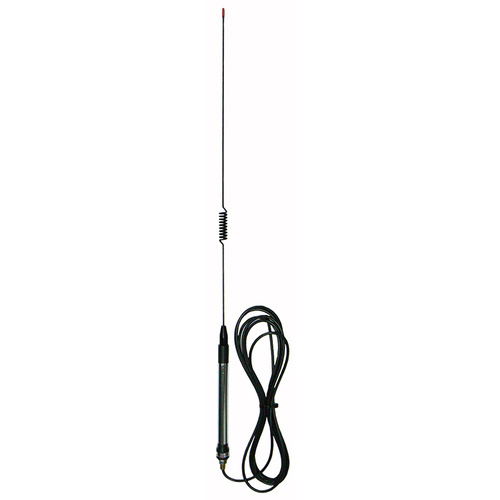

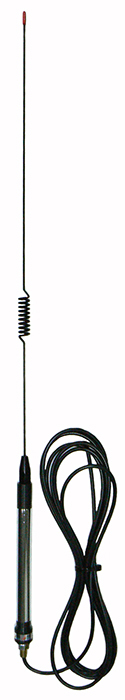

ZCG UHF Ground Independent Elevated Feed Antenna



Key Features



  • The GID-M430 stainless steel whip elevated feed antenna offers effective performance and good gain all within a lightweight design.



Usage



  • This antenna is suitable for vehicle mounting or fixed position mounting for use in UHF communications with the 420-440MHz range

  • This antenna does not come fitted with a dampening spring

  • It is recommended to mount to any bracket with a minimum 10mm hole.



Specifications / Frequency



  • Weight: 590grams

  • Dimensions: H= 890mm

  • Construction: Stainless steel whip, brown cap, delrin and chrome base and cable assembly

  • HEPlane: H Plane: 360° Omnidirectional

  • Impedance: 50 Ohms

  • Polarisation: Vertical

  • Connector: UHF Male PL259 supplied not fitted

  • Frequency: UHF 420 - 440MHz

  • Bandwidth: Full band

  • Tuning: Factory @ 1.5:1 VSWR

  • Gain: 6.2 dBi

  • Max power: 50 Watts



Read more





zcg scalar antennas logo

(GID-M430)

SKU GID-M430
Brand ZCG
Shipping Weight 1.0000kg
Shipping Width 0.900m
Shipping Height 0.075m
Shipping Length 0.075m
Shipping Cubic 0.005063000m3
